Tuttnauer LabSci 60LV Vertical Lab Autoclave 60L or 15 gallons
Regular price
Sale price
$16,837.00
Regular price
$18,708.00
Shipping calculated at checkout.
Couldn't load pickup availability
Tuttnauer LabSci 60LV Vertical Lab Autoclave is a top loading steam sterilizer for liquids and solids. This is part of Tuttnauer's T-Lab ECO or economic line developed especially for educational institutions and research facilities.
Chamber Volume: 60 Liters or 15.9 gallons
Product code: NTLABSCI60LV

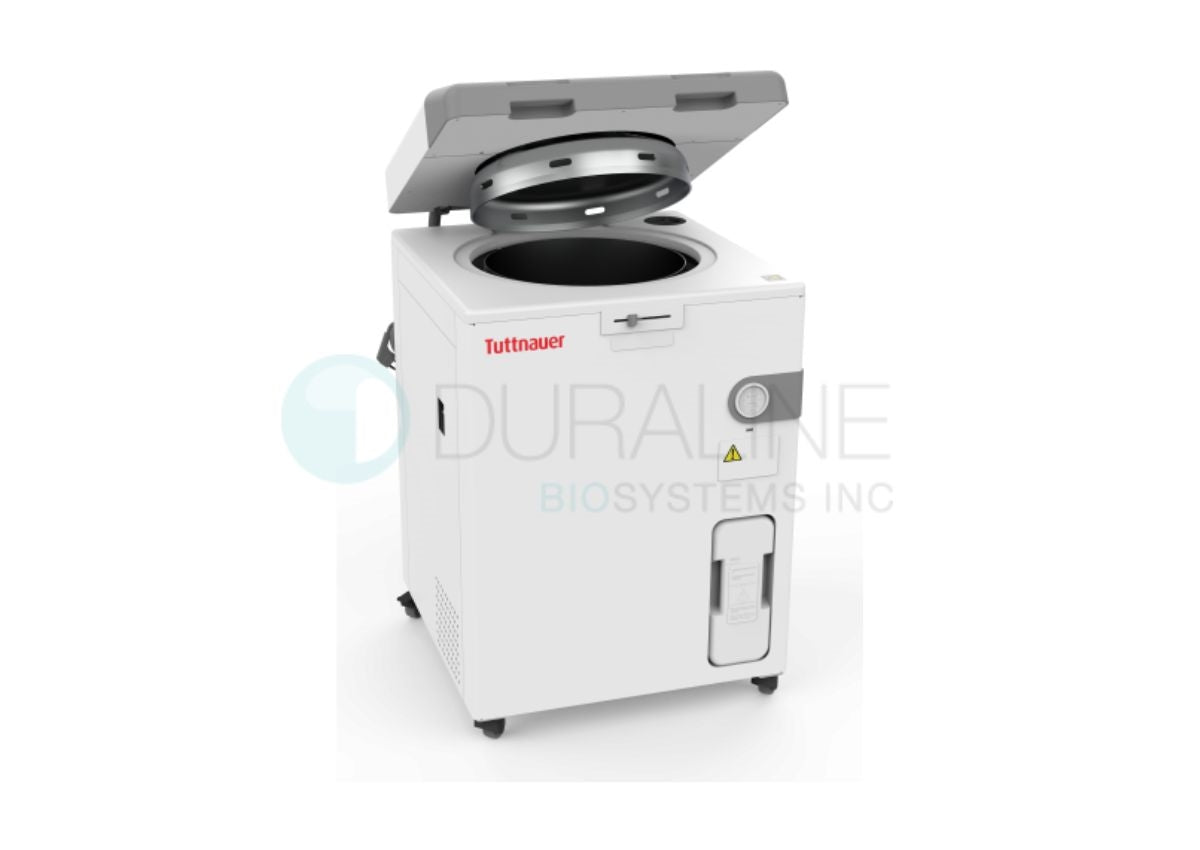

Maximize productivity and workflow in your facility with the new Tuttnauer LabSci 60LV laboratory autoclave. This sterilizer can sit right on the floor, just over 3 feet tall, without taking up any counterspace. Rather than a door that swings to the left or right, like standard tabletop autoclaves, this unit opens from the top and can be loaded vertically. Don't like where it is located in your lab? No problem! The LabSci 60LV includes swivel wheels - just push it to a better location and lock them in place.
Cylindrical autoclaves offer optimal performance within a small space. They are easier to operate, less expensive to maintain and are more reliable with a longer life-term. This sterilizer can fit up to four 2000 mL Schott-Duran Flasks/bottles or three 2000 mL Erlenmeyer Flasks. It comes with 4 validate programs and an additional 16 fully customizable programs. It's compatible for liquid sterilization, plastic sterilization, textiles sterilization, glass sterilization and instrument sterilization.
Features & Benefits:
See Technical Specifications for product details and loading capacities.
All LabSci Life Science sterilizers incorporate advanced technological features to provide safe and validated sterilization:
Chamber Volume: 60 Liters or 15.9 gallons
Product code: NTLABSCI60LV
Maximize productivity and workflow in your facility with the new Tuttnauer LabSci 60LV laboratory autoclave. This sterilizer can sit right on the floor, just over 3 feet tall, without taking up any counterspace. Rather than a door that swings to the left or right, like standard tabletop autoclaves, this unit opens from the top and can be loaded vertically. Don't like where it is located in your lab? No problem! The LabSci 60LV includes swivel wheels - just push it to a better location and lock them in place.
Cylindrical autoclaves offer optimal performance within a small space. They are easier to operate, less expensive to maintain and are more reliable with a longer life-term. This sterilizer can fit up to four 2000 mL Schott-Duran Flasks/bottles or three 2000 mL Erlenmeyer Flasks. It comes with 4 validate programs and an additional 16 fully customizable programs. It's compatible for liquid sterilization, plastic sterilization, textiles sterilization, glass sterilization and instrument sterilization.

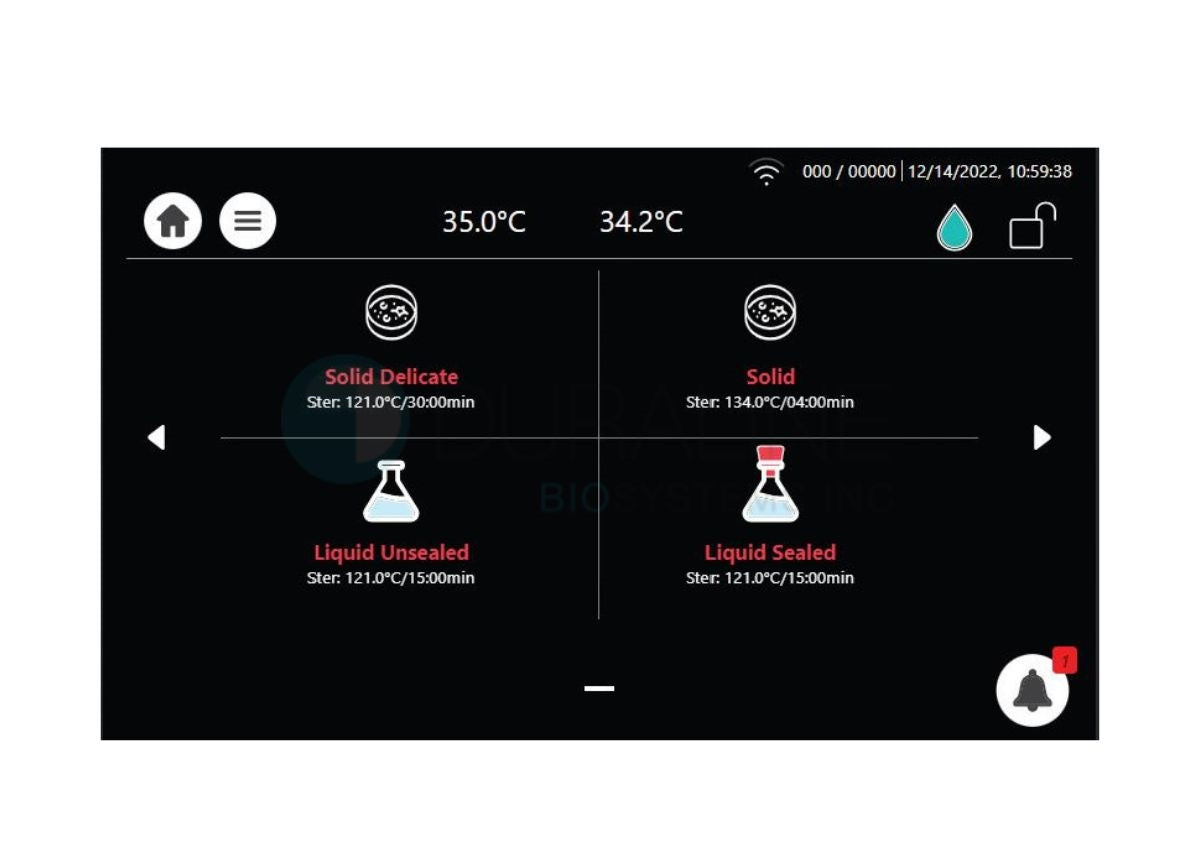

- Simple to use - Multi-colored, high-resolution touchscreen control makes it simple operate. Just follow the prompts!
- Easy to install - no plumbing required.
- Integrated Temperature Probes: Includes 2 temperature probes to prevent boil-over and ensuring proper sterilization.

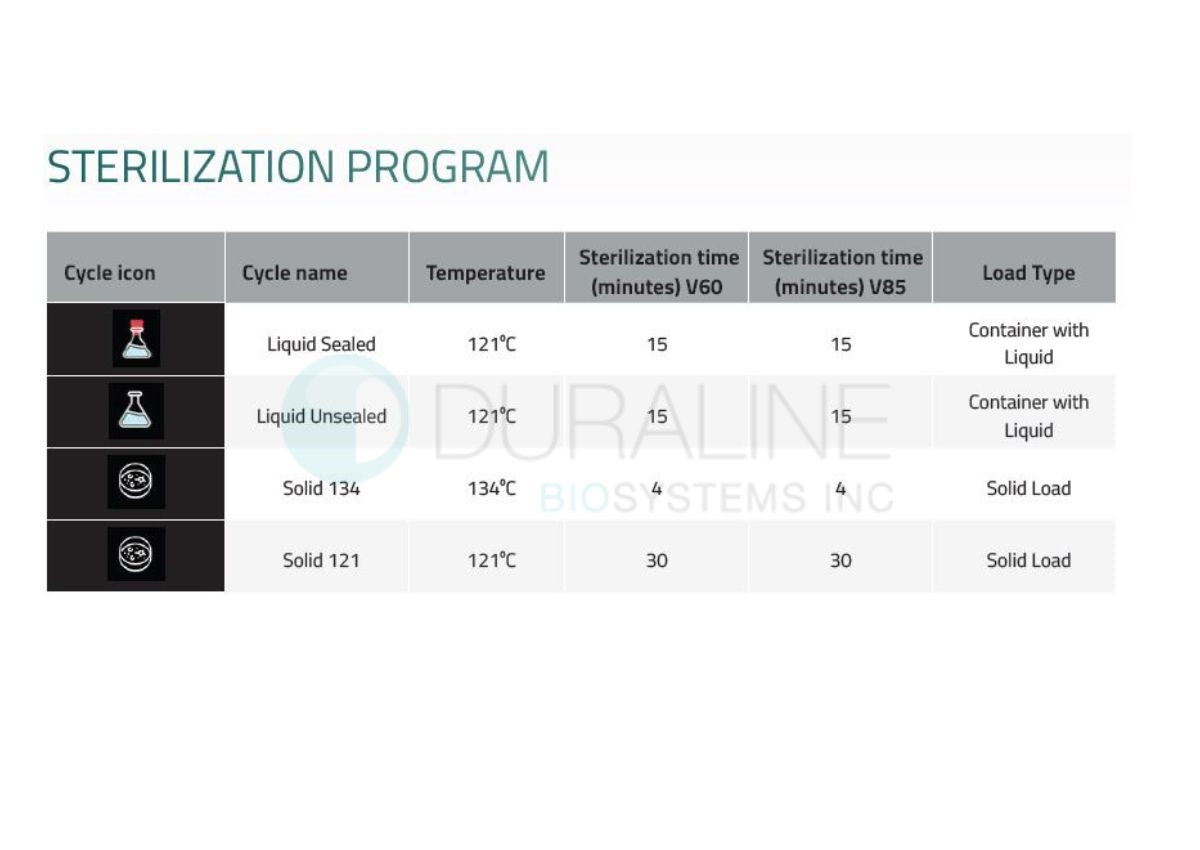

- Four validated cycles (glass, plastic, liquid A and liquid B-waste)
- Large loads: Perfect for large horizontal objects like Bioreactors
- Built-in cooling fan AND built-in MEMORY of 999 cycles
- Plug and Play - just need a power source! Swivel wheels are lockable.
- Includes two stainless steel wire baskets 14.2" x 7.4"H
-
Options: Warming (95° to 104°C), Isothermal (80° to 94°C), F0, 21 CFR with R.PC.R software, Biohazard filter
-
Optional thermal printer
- Optional stainless steel basket 13.7" x 12.6"H
- Optional Leakage Tray 13.6" x 1.6"H
-
See Technical Specifications for product details and loading capacities.
All LabSci Life Science sterilizers incorporate advanced technological features to provide safe and validated sterilization:
- All liquid capable sterilizers include temp probes preventing boil-over and ensuring proper sterilization
- Customizable cycles (could be saved on the system and not re-entered each time).
- R. PC. R software is available on all "LabSci" models.
WARRANTY: 2 YEAR PARTS ONLY
Technical Specifications:
Loading Capacities:
- Chamber Volume: 60L / 15.9 gallons
- Chamber Size: 15.4" x 19.9"

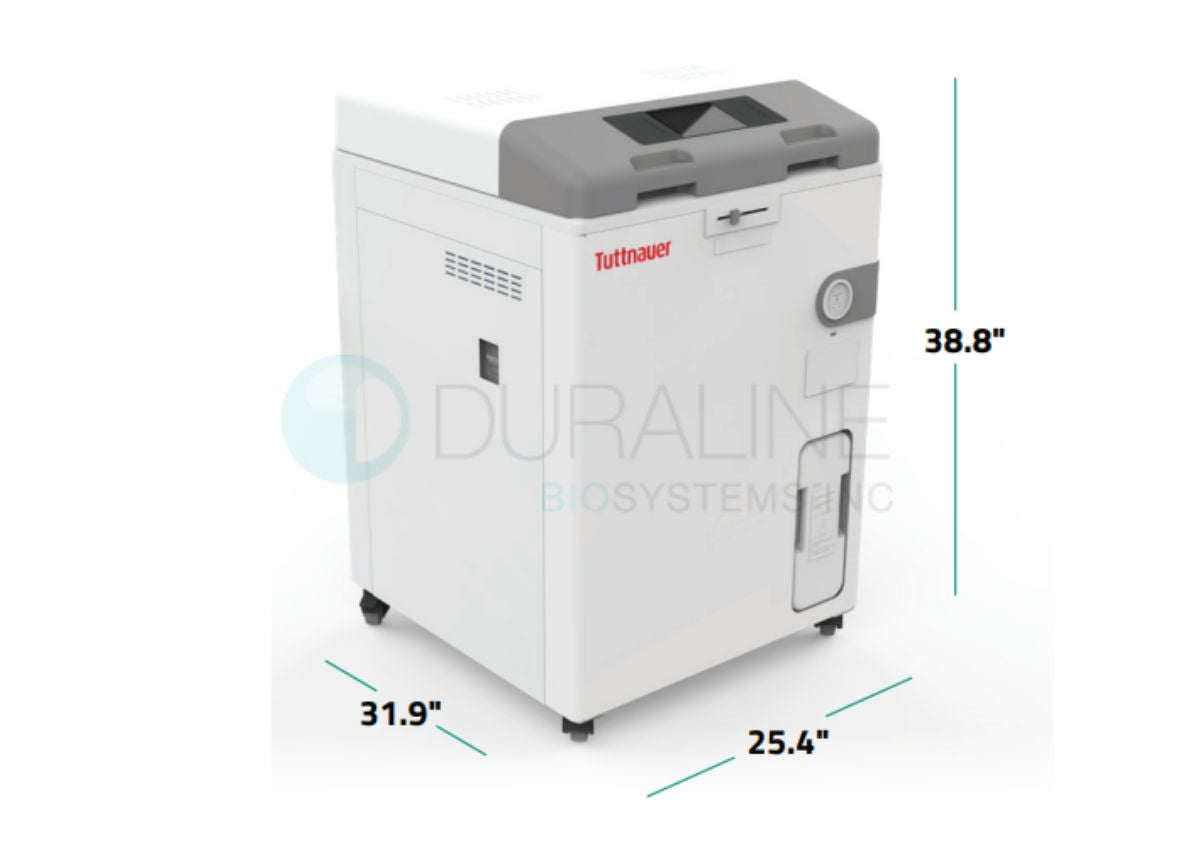

- External Dimensions: 25.4"W x 38.8"H x 31.9"D
- Electrical Power, Voltage and Frequency: 220-240V, VAC, Single phase, 50-60Hz, 3000W, 13.1 Amps
- Wastewater Tank: 3 Liters
- Cooling Water Tank: 6 Liters
- Maximum Allowable Working Pressure: 40.6 psi
- Weight: 244.7 lbs
Loading Capacities:
New 2024 LabSci brochure
LabSci 60LV & 85LV Vertical Lab Autoclave Brochure
The LabSci Autoclaves gives you easy access to its cycle data. Via USB, Ethernet or printer.
✦ Optional External Printer- Gives you a detailed cycle report
✦ IOT Ready: WIFI/Cloud connection will soon be available Ideal for (future) remote monitoring
LabSci 60LV & 85LV Vertical Lab Autoclave Brochure
The LabSci Autoclaves gives you easy access to its cycle data. Via USB, Ethernet or printer.
Connectivity
✦ Standard USB Connection- Download cycle history to store it on the network✦ Optional External Printer- Gives you a detailed cycle report
✦ IOT Ready: WIFI/Cloud connection will soon be available Ideal for (future) remote monitoring
Remote Monitoring
✦ Remote monitoring of multiple autoclaves from any PC on your local network in real time
✦ Automatic downloading of cycle history to your PC
✦ Built-in memory is capable of storing approximately 1000 cycles
✦ Generate PDFs from cycle analysis that can easily be printed for future reference
✦ R.P.C.R can also analyze, and store cycle history downloaded with USB drive
Standards: PED 97/23
MDD 93/42
ASME
UL/EN 61010-1
FDA
ISO 13485:2003
ISO 9001:2000
✦ Automatic downloading of cycle history to your PC
✦ Built-in memory is capable of storing approximately 1000 cycles
✦ Generate PDFs from cycle analysis that can easily be printed for future reference
✦ R.P.C.R can also analyze, and store cycle history downloaded with USB drive
Standards: PED 97/23
MDD 93/42
ASME
UL/EN 61010-1
FDA
ISO 13485:2003
ISO 9001:2000
Q. How can you access LabSci Autoclave cycle data?
A. Via USB, Ethernet, printer, or upcoming WIFI/Cloud connection.
Q. What connectivity options are available?
A. USB, external printer, and future WIFI/Cloud connection.
Q. How is remote monitoring enabled?
A. Real-time PC monitoring, automatic cycle history download, up to 1000 cycles stored.
Q. What's the Chamber Volume of LabSci 60LV?
A. 60 liters or 15.9 gallons.
Q. Describe Tuttnauer LabSci 60LV.
A. Top-loading vertical autoclave for liquids and solids, part of T-Lab ECO line.
Q. How does LabSci 60LV open and load?
A. Top-loading, vertical loading, swivel wheels for mobility.
Q.What items can be sterilized?
A. Liquids, plastics, textiles, glass, instruments; customizable cycles available.
Q. How is control ensured during sterilization?
A. Integrated temp probes prevent boil-over; customizable cycles and R.PC.R software.
Q. What are LabSci series warranty terms?
A. 2 years for parts and labor.
Q. How can LabSci cycle data be accessed digitally?
A. USB download, external printer, or future WiFi/cloud connection.
Q. What's the purpose of Tuttnauer LabSci 60LV?
A. Efficient vertical autoclave for research and education, space-saving and versatile.
WARRANTY: 2 YEAR PARTS ONLY
