New Midmark M11 Ultraclave Autoclave Midmark M11-050
Couldn't load pickup availability
Four stainless steel trays—two large and two small—to accommodate various instruments.

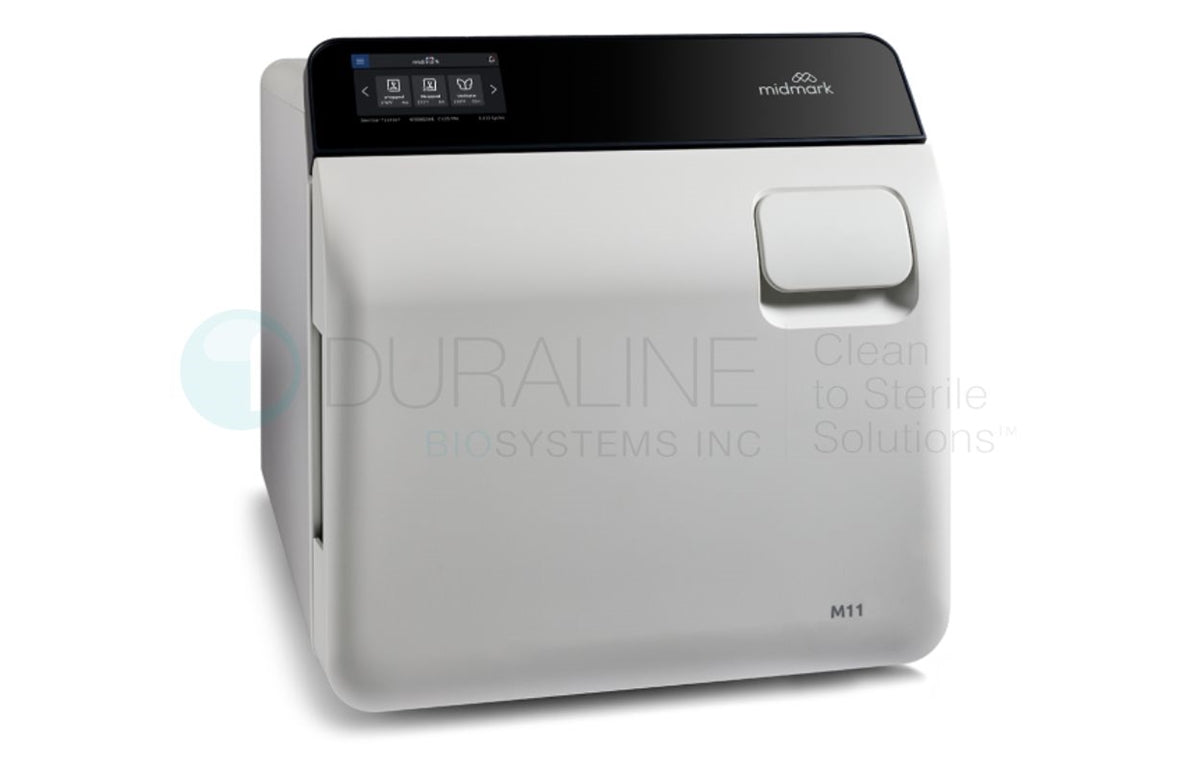

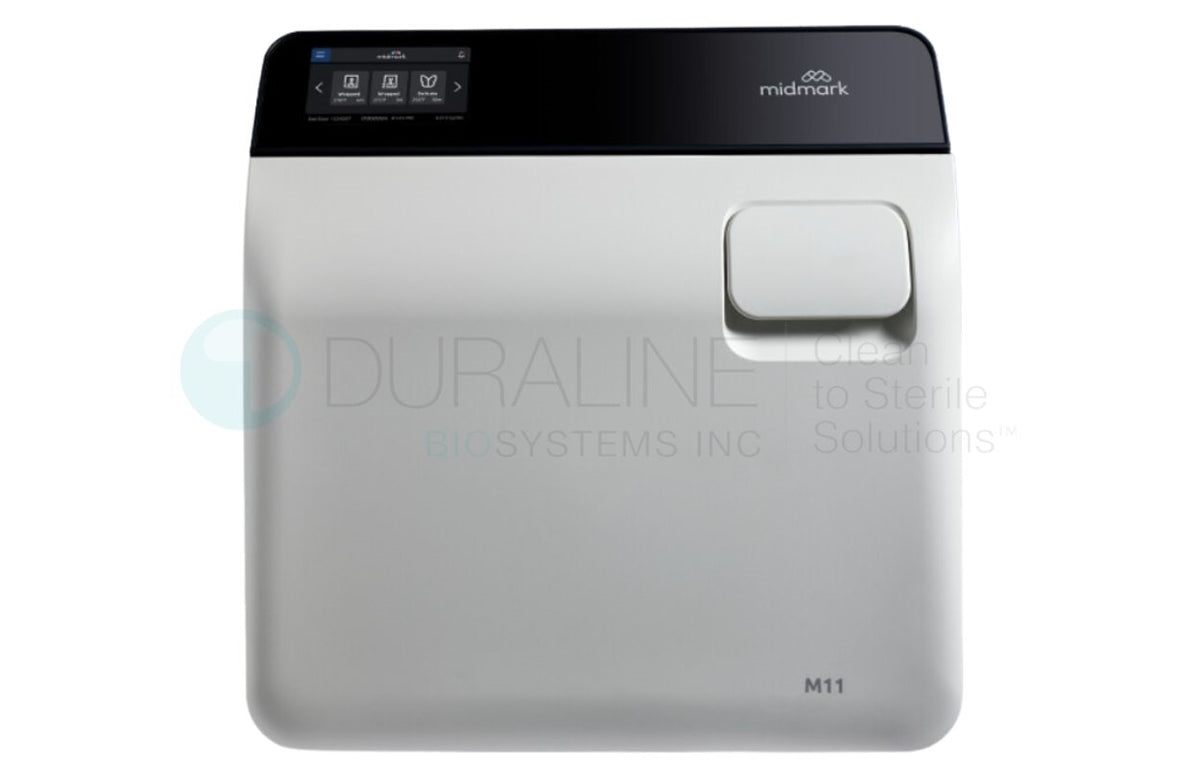

The Midmark M11-050 Gen 5 Steam Sterilizer combines a sleek, modern design with upgraded capabilities that enhance functionality and performance. Its advanced touchscreen interface, streamlined compliance recordkeeping, and enhanced durability provide an efficient and reliable sterilization solution for modern medical and dental practices.
- Intuitive 5-Inch Touchscreen: The fingerprint-resistant touchscreen supports gloved operation and offers light and dark display modes. Pre-programmed cycles, real-time alerts, and a large cycle-countdown clock support quick, confident operation.
- Streamlined Compliance Recordkeeping: Automated cycle recordkeeping, user authentication, and unlimited storage of routine care events help reduce transcription and documentation errors while keeping the sterilizer audit ready.
-
Enhanced Durability: The reengineered chamber increases the sterilizer’s e
xpected operating life to 25,000 cycles and reduces required service frequency by more than half. - Improved Cycle Monitoring: A color-coded LED light bar displays in-progress, complete, and error conditions from a distance. A cycle-countdown clock and audible cues support workflow management.
The Midmark M11 Steam Sterilizer uses a steam-flush pressure-pulse air-removal system to support proper steam sterilization. Pre-programmed cycles, touchscreen prompts, real-time alerts, and cycle-status indicators help simplify operation and notify users of critical system errors.
- Reconfigured sterilization cycle aligns with the FDA 4-minute cycle recommendation
- Additional heat during the drying phase improves drying capabilities
- Included pouch rack supports packaged instrument processing
- Low-water indicator identifies when the reservoir level is too low
- Door-ajar indicator identifies when the door is not securely closed
- Cycle display shows temperature during heat-up and remaining cycle time
- Progressive indicators display filling, heating, sterilizing, drying, and complete stages
- Front-access reservoir supports easier filling and draining
- Large-capacity water reservoir requires less frequent filling

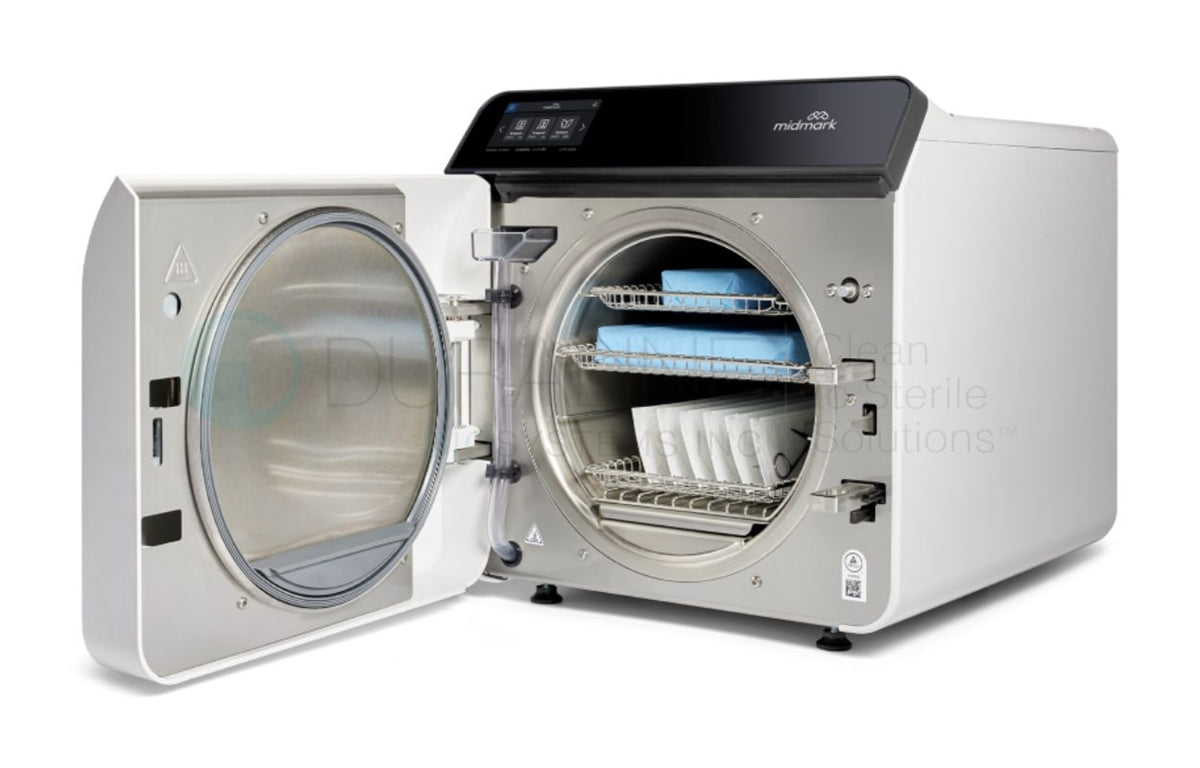

- Includes four stainless steel trays: two large and two small
- Pressure gauge and electronic controls support straightforward operation
- Compatible with a quiet, easy-to-install thermal printer
- Meets the ANSI/AAMI ST55 testing standard
- USB Kit sold separately
View Midmark M11-050 Specifications
- Chamber Size: 11" × 18" (27.9 × 45.7 cm)
- Chamber Volume: 6.5 gal (24.6 L)
- Overall Dimensions: 23.5" L × 17.8" W × 18.6" H
- Water Reservoir Capacity: 1.4 gal (5.3 L) to full mark; 0.8 gal (3 L) usable volume
- Trays: Four stainless steel trays
- Large Trays: Two, 9.1" W × 15.3" L × 0.9" D (23 × 38.7 × 2.2 cm)
- Small Trays: Two, 6.8" W × 15.3" L × 0.9" D (17 × 38.7 × 2.2 cm)
- Pouch Rack: Six slots
- Voltage: 115 VAC or 230 VAC
- Electrical: 115 VAC, 12 A, 50/60 Hz
- Shipping Weight: 131 lb
- Minimum Countertop Area: 21.8" D × 26.5" W (55.4 × 63.7 cm)
Press the Start/Standby button, and the sterilizer automatically fills with the correct amount of water. Select the required cycle, and the sterilizer handles the remaining process. Unwrapped-instrument cycle times are 28 minutes from a cold start and 18 minutes from a hot start.

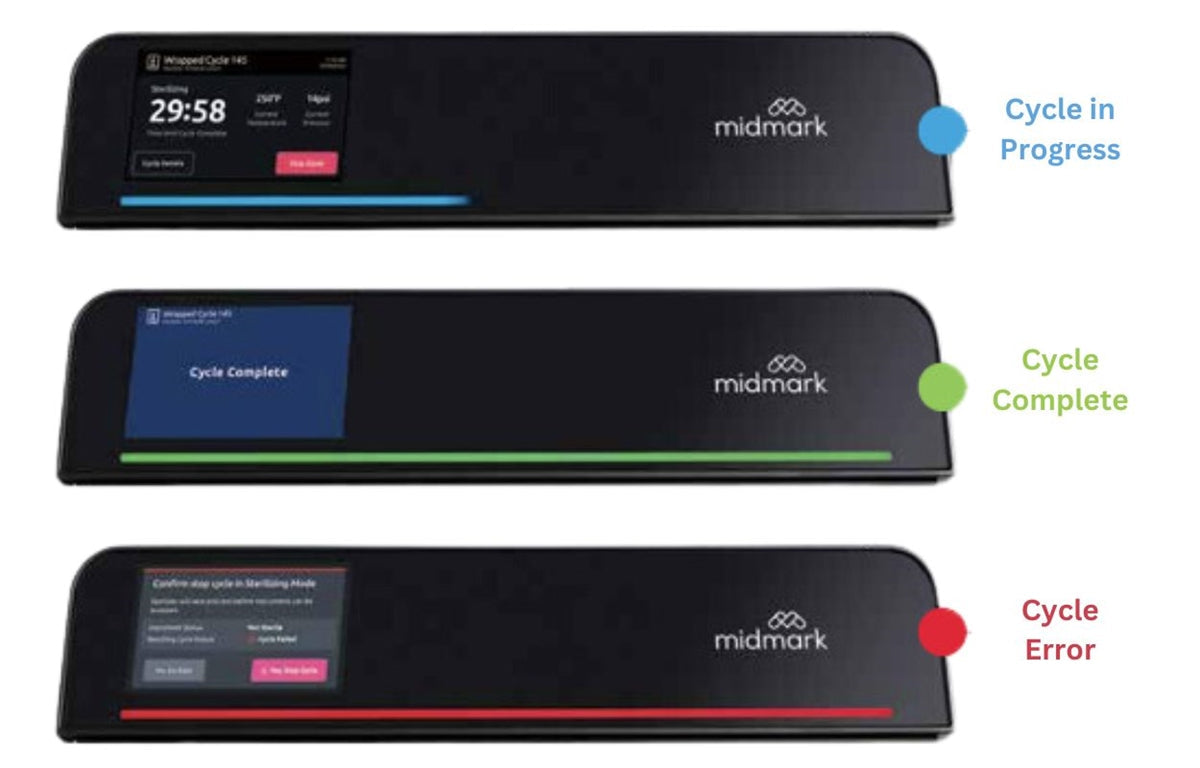

- View cycle-in-progress, cycle-complete, and cycle-error status from a distance using the color-coded LED light bar, audible cues, and visual indicators.
- The display provides the sterilizer temperature during heat-up and the remaining cycle time.
The large-capacity water reservoir reduces refill frequency. The water fill and drain connections are located at the front of the sterilizer for convenient access.
- A low-water indicator alerts the user when the reservoir requires refilling.
- A door-ajar indicator alerts the user when the sterilizer door is not securely closed.
Q. What is the Midmark Ritter M11-050 Gen 5 steam sterilizer?
A. The Midmark Ritter M11-050 Gen 5 is a large-capacity countertop steam sterilizer designed to simplify instrument processing with a modern touchscreen interface, automated recordkeeping, and enhanced durability.
Q. What is new about the Midmark M11-050 Gen 5?
A. The newest generation features a 5-inch touchscreen, automated cycle recordkeeping, user authentication, improved workflow visibility, and a reengineered chamber designed for longer service life.
Q. What size chamber does the Midmark M11-050 have?
A. The Midmark M11-050 includes an 11" x 18" chamber, providing larger load capacity compared to smaller tabletop sterilizers.
Q. Does the Midmark M11-050 include trays?
A. Yes. The unit includes four stainless steel trays—two large and two small—to accommodate a variety of instruments.
Q. Does the Midmark M11-050 help with compliance and documentation?
A. Yes. It offers automated cycle recordkeeping, user authentication, and routine care tracking to help support compliance and reduce manual documentation errors.
Q. How durable is the Midmark M11-050 Gen 5?
A. The reengineered chamber is designed for up to 25,000 cycles, helping extend equipment life and reduce maintenance frequency.
Q. Does the Midmark M11-050 have a touchscreen display?
A. Yes. It features a fingerprint-resistant 5-inch touchscreen with intuitive navigation and clear cycle visibility.
Q. Can staff monitor cycle status from a distance?
A. Yes. A color-coded LED light bar and visible indicators allow staff to quickly see cycle status from across the room.
Q. Who is the Midmark M11-050 best suited for?
A. It is ideal for dental offices, medical practices, outpatient clinics, and other facilities requiring a larger-capacity tabletop steam sterilizer.
Q. What is the difference between the Midmark M11 and M9?
A. The main difference is chamber size. The M11 offers a larger 11" x 18" chamber for higher capacity, while the M9 is more compact for smaller loads.
Midmark M9-050 WARRANTY: 2-year parts only
