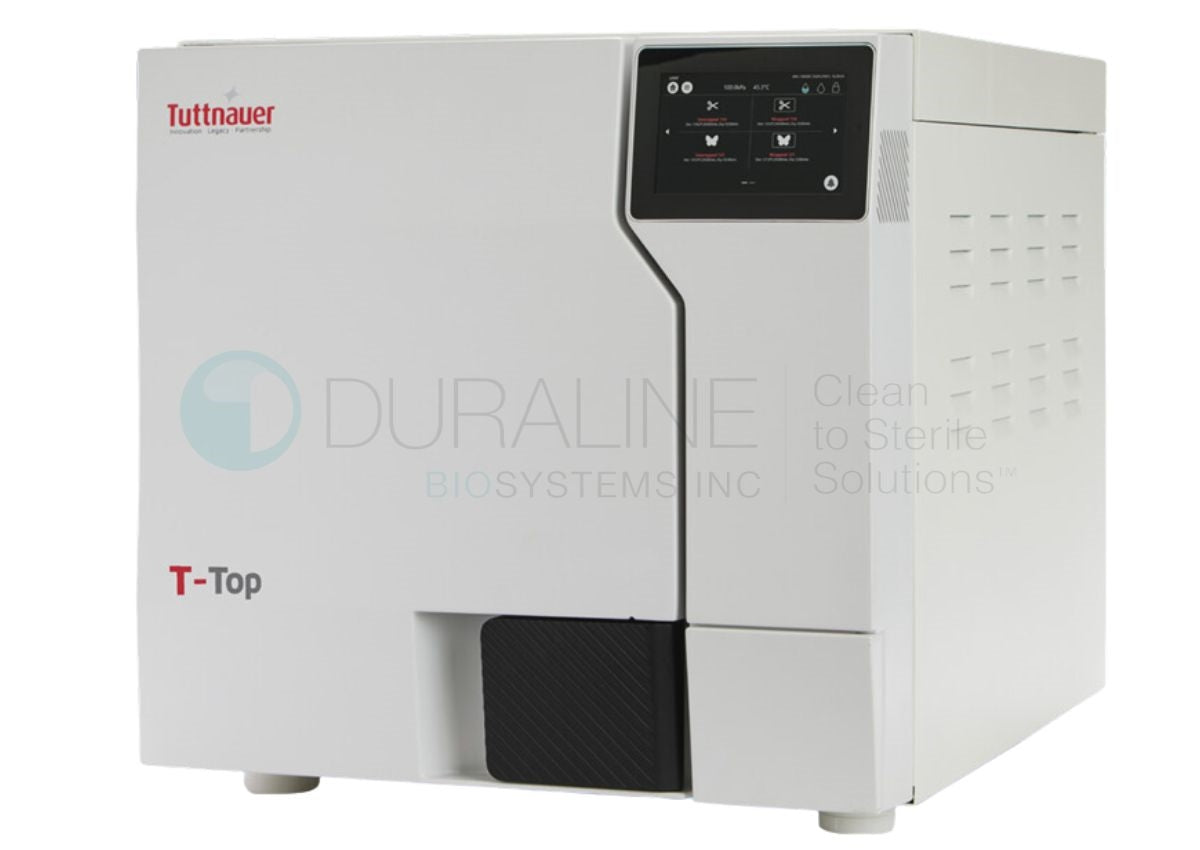

Tuttnauer T-Top 11B Pre Post Vacuum Autoclave 120V, Class B
Regular price
$8,499.00
Sale price
Regular price
Shipping calculated at checkout.
Couldn't load pickup availability
Tuttnauer T-Top 11B Pre Post Vacuum , Class B Autoclave Steam Sterilizer with 11" chamber. 5 trays. (11 (W) x 18 (D))
7.1 gallon / 27 Liter Large Chamber Capacity with Class B
Product code: NT-TOP11B
Large 27 Liter chamber. Class B Sterilizer (Closed-Door Drying) Maximum efficiency. Sterilize more in a single cycle to free up your time to treat patients.
Note: This model uses the same technology as the T-Edge 10B but with a larger chamber

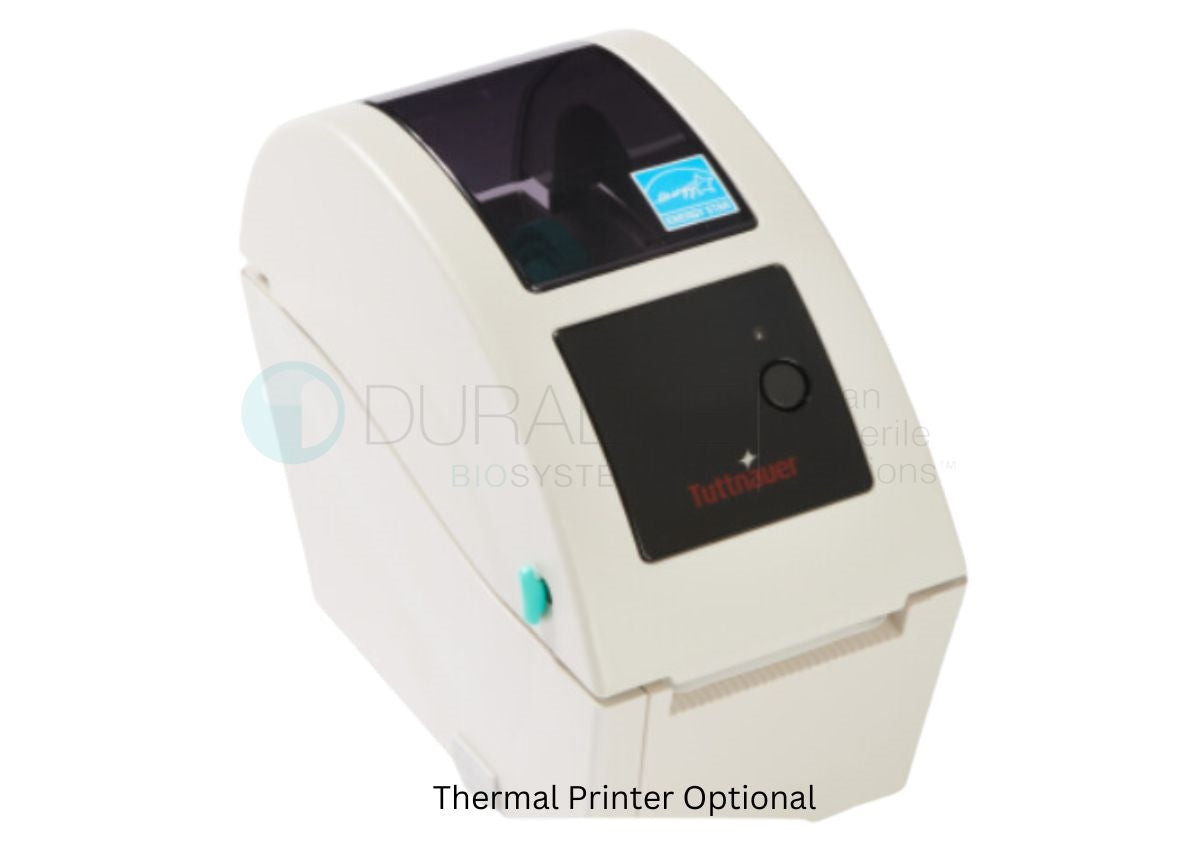

*Printer sold separately:
Tuttnauer Thermal Barcode Desktop Printer for T-Edge and T-Top Autoclaves
One Stop Shop for all your Infection control needs
7.1 gallon / 27 Liter Large Chamber Capacity with Class B
Product code: NT-TOP11B

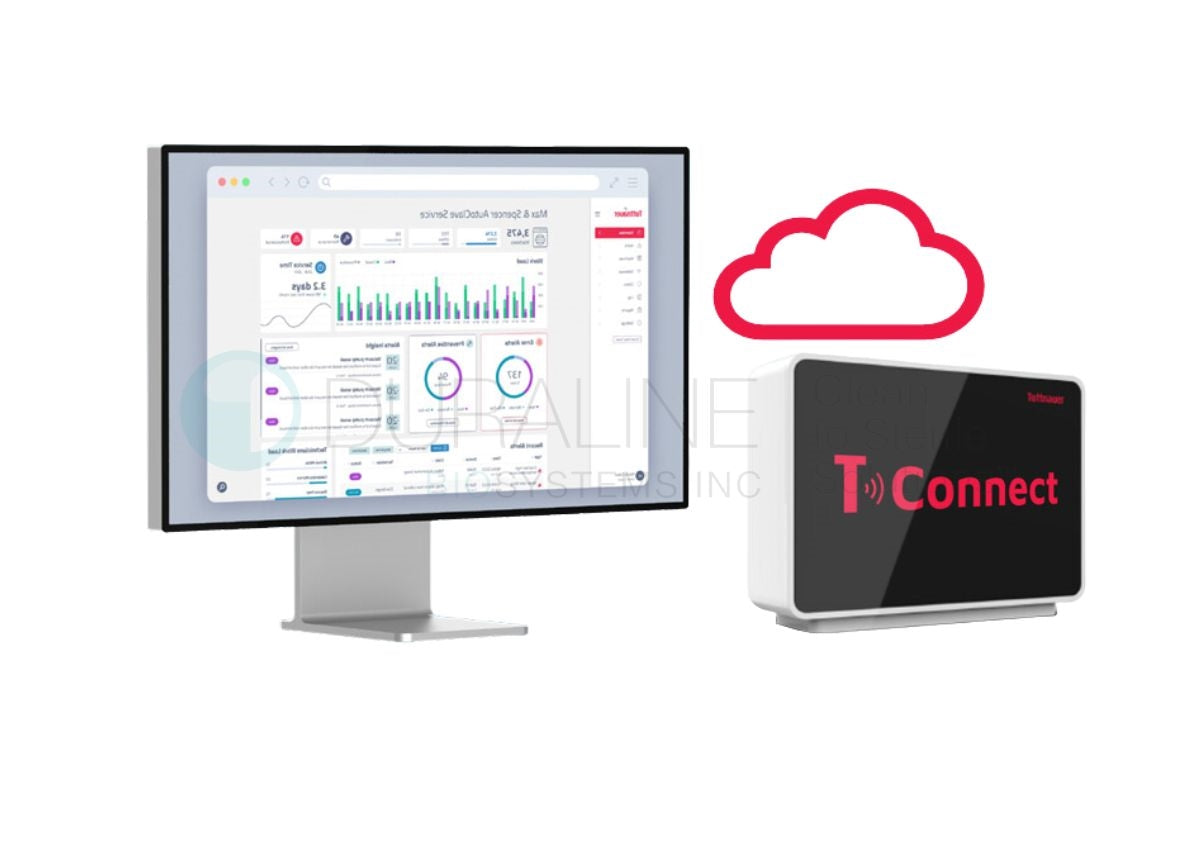

Cloud based paperless software, T-Top devices feature the exclusive and technologically advanced T-Connect, a cloud, based IoT solution for your sterilization center.
Large 27 Liter chamber. Class B Sterilizer (Closed-Door Drying) Maximum efficiency. Sterilize more in a single cycle to free up your time to treat patients.
Designed to meet all the most current sterilization standards ANSI/AAMI ST55 ensuring highest sterilization levels and highest quality constructions to ensure longevity.
Features:
Features:
- Low Cost - Top Performance - Plug & Play
- Class B pre/post vacuum sterilization (Closed Door Drying)
- Short & Fast Cycles: 25 Minute unwrapped instruments complete cycle, w/drying (immediate use)
- Optimal chamber capacity: More than 80% chamber capacity extra-long trays
- Separate water reservoirs for clean/used water, ensuring clean water is used with each cycle.
- T-Connect: Advanced Remote Diagnostics: Wi-Fi: Monitor you autoclave via smartphone or tablet app
- Advanced documentation: A variety of documentation and traceability options and barcodes
- User-friendly touch screen control panel: Displays programs, cycles times, water levels and more
- Comes with automatic drain and fill kit included
- Water filling: Manual and Automatic
Note: This model uses the same technology as the T-Edge 10B but with a larger chamber
*Printer sold separately:
Tuttnauer Thermal Barcode Desktop Printer for T-Edge and T-Top Autoclaves
One Stop Shop for all your Infection control needs
- Sealing Machines with EasySeal Technology
- How To Spore Test Your Autoclave
- Ultrasonic Cleaner
- Tuttnauer Tiva Washer Disinfector
Warranty: 2 YEAR PARTS ONLY
Technical Specification
Sterilization Cycle Programs - Sterilization time (w/ Drying) *
- Chamber Size: 11(W)" x 18(D)"
- Volume: 27L
- Pre/Post vacuum (Class B)

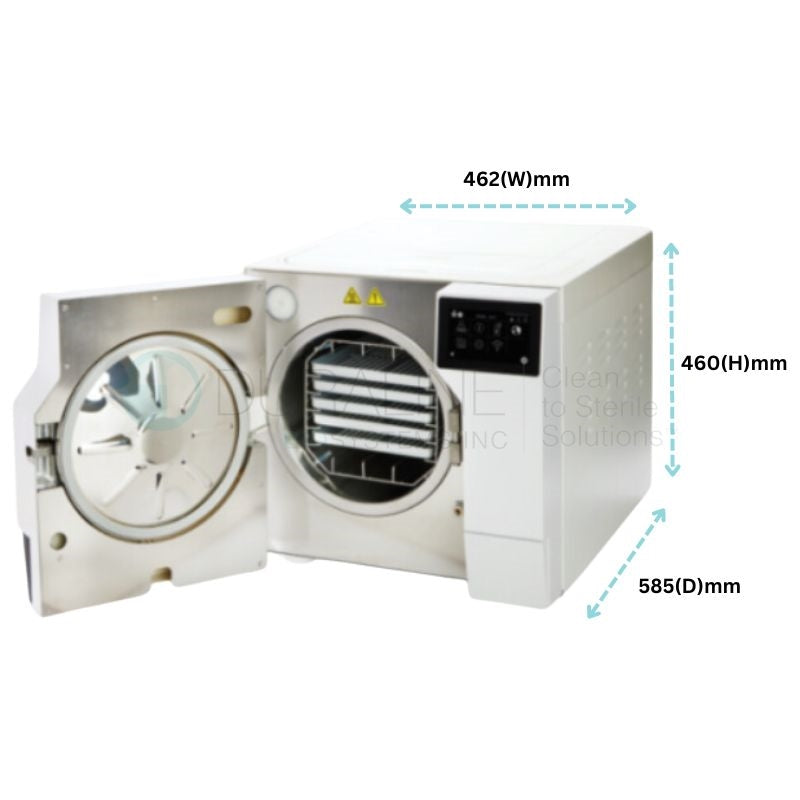

- Overall Dimensions: 23(D)" x 19.5(W)" x 17.5(H)"
- Water Filing: Manual
- LCD Multicolor user-friendly touch screen with intuitive icons

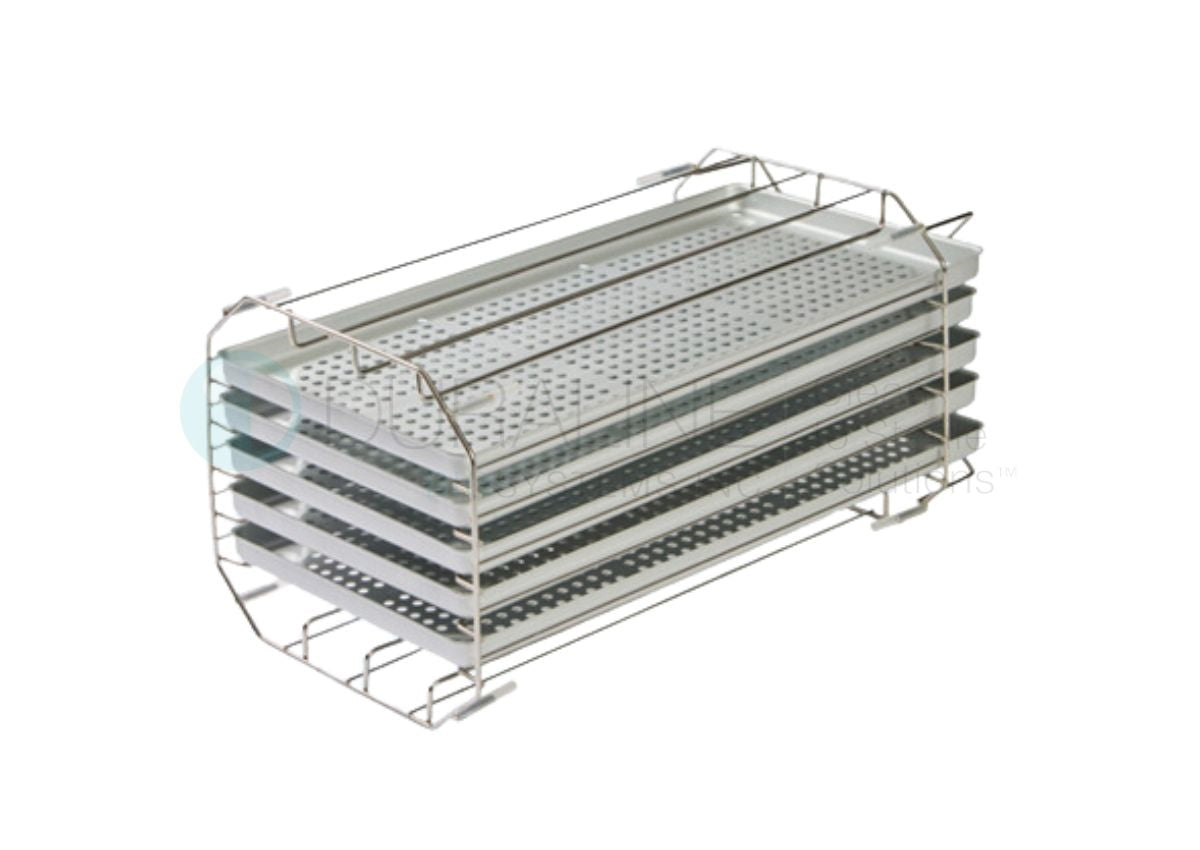

- Trays: 5
- Tray Dimensions: 14.7(D)" x 7.3(W)" x 0.6(H)"
- Voltage: 110-120V
- Frequency: 50-60Hz
- Power: 1700W
- Shipping Weight: 115 lbs
- Digital Connections:

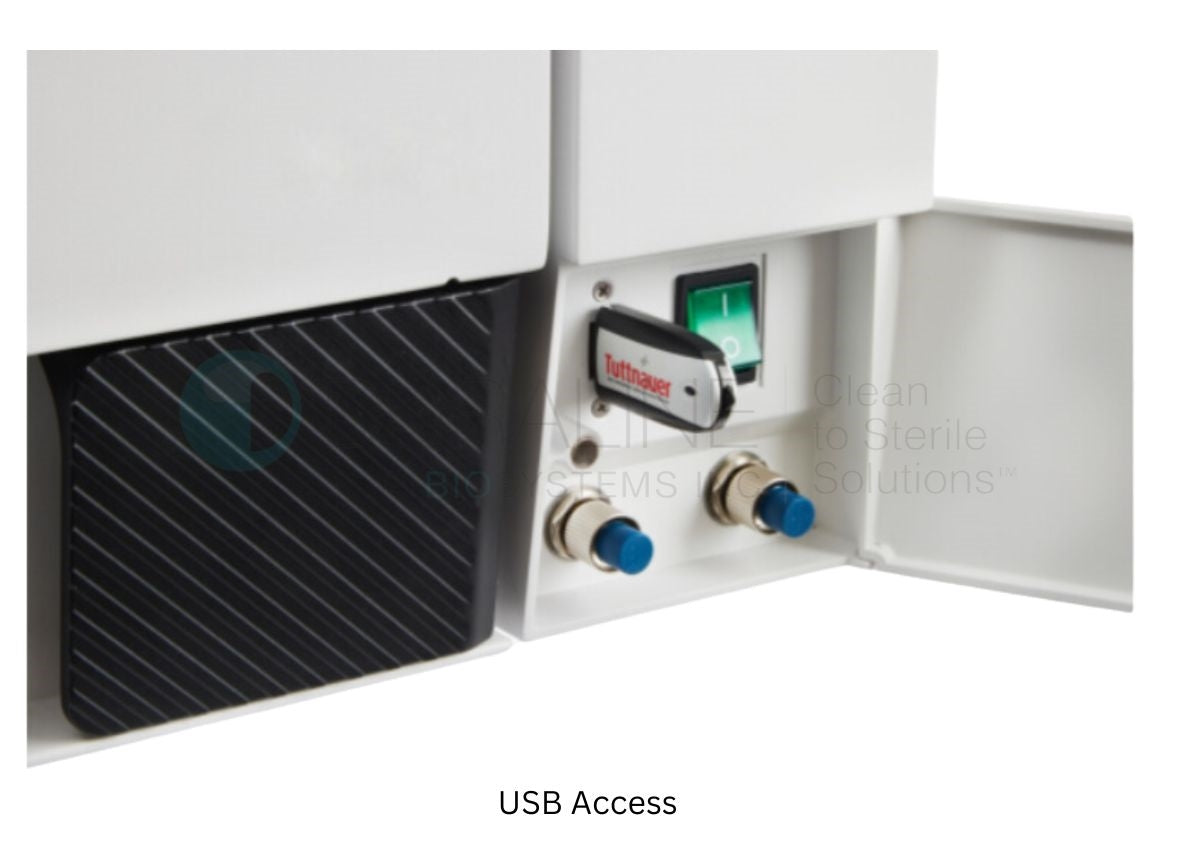

- 1 ethernet port, 2 USB Ports
- Wi-Fi connection & T-Connect software.
- Remotely access cycle history
- Paperless documentation
Sterilization Cycle Programs - Sterilization time (w/ Drying) *
- Unwrapped 273°F
- 38min - Unwrapped Instruments - For immediate use
- Wrapped 273°F
- 66min - Wrapped Pouches - For Storage
- Unwrapped 250°F
- 80min - Unwrapped Delicate Instruments - For immediate use
- Wrapped 250°F
- 72min - Wrapped Delicate Instruments - For storage
- Wrapped 250°F / 2kg
- 46min - Small Loads of up to 4.4 lbs.- For quick turnaround.
T-Top vs T-Edge vs LabSci Comparison
| Model | Tools/Instruments | Glass | Textiles/Clothes | Liquids | Media/Plastic |
|---|---|---|---|---|---|
| T-Top 11S / 11B | Y | Y | Y | N | N |
| T-Edge 10S / 11S | Y | Y | Y | N | N |
| LabSci 11L | Y | Y | N | Y | Y |
| LabSci 15L | Y | Y | N | Y | Y |
| LabSci 15L+ | Y | Y | N | Y | Y |
Key Differences: T-Edge models (T-Top 10S and T-Edge 11S) support textiles/clothes but not liquids or media/plastic. LabSci models (11L, 15, and 15L+) support liquids and media/plastic but not textiles/clothes. All models support tools/instruments and glass.
