SteriSpace CATOX Emissions Abatement System
Product Code: NSSA

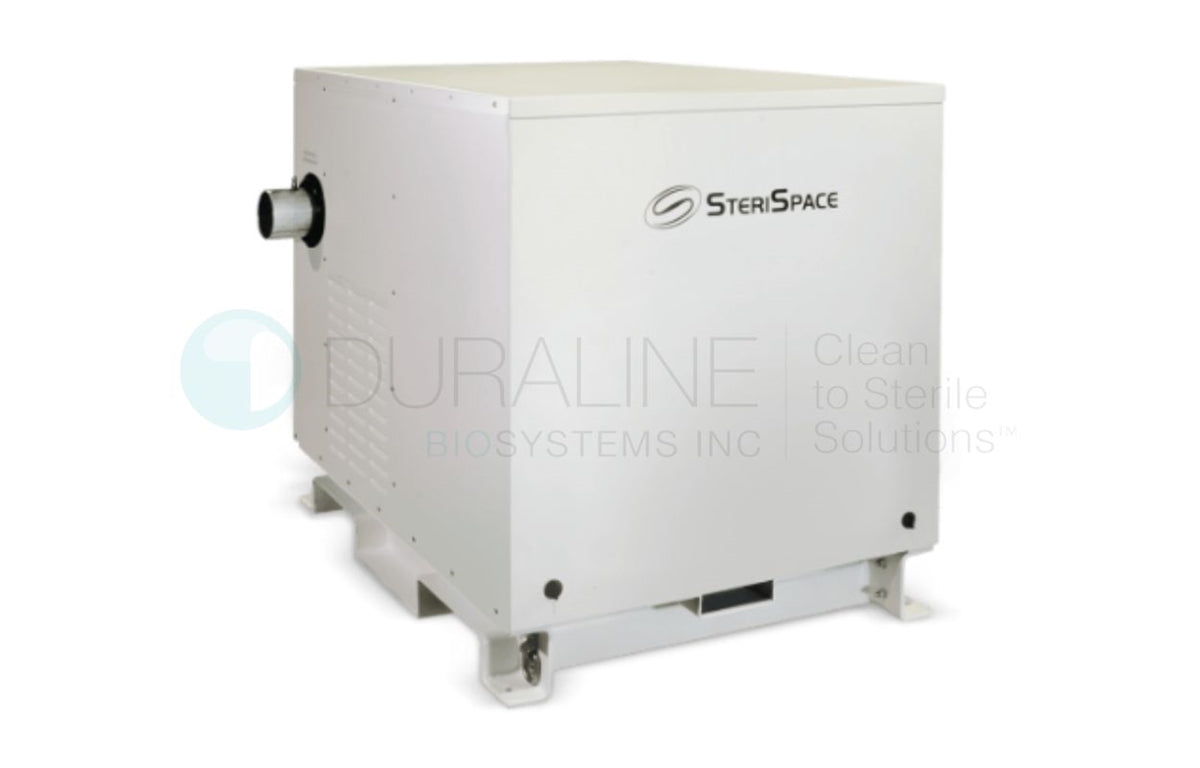

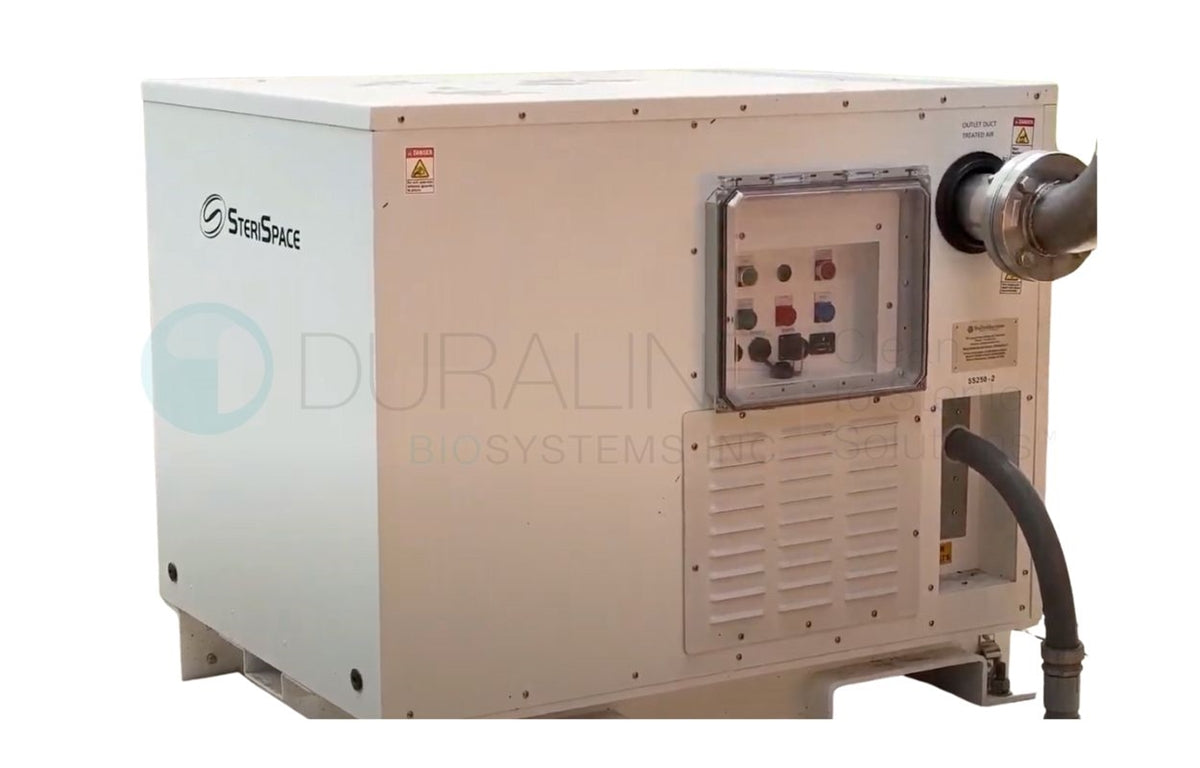

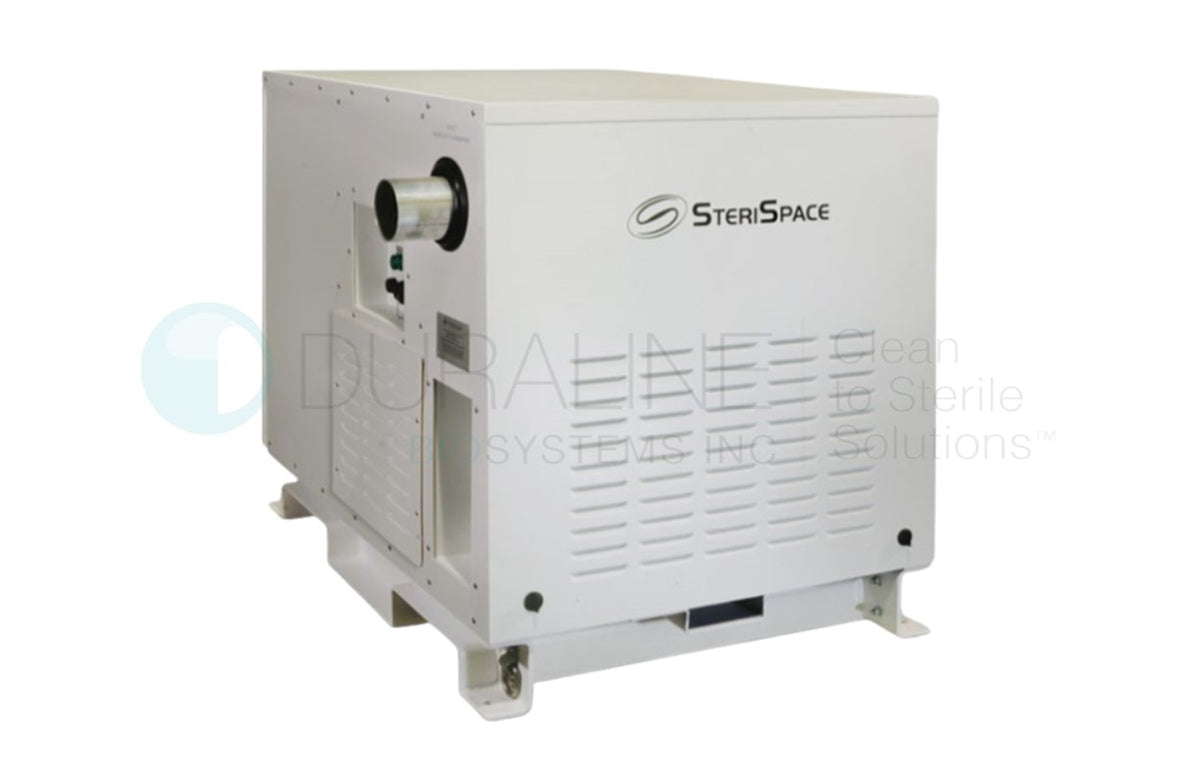

The SteriSpace® YFS CATOX Electric Recuperative Catalytic Thermal Oxidizer is a fully electric EtO and PPO emissions abatement system designed for safety, reliability, and energy efficiency. Using compressive heat and catalytic oxidation, the system reduces Ethylene Oxide to 5 PPB and Propylene Oxide to 10 PPB residual levels. Built with all stainless-steel components and a gas-tight design, YFS CATOX requires no gas train and minimal maintenance. Each unit is shop-assembled, pre-wired, tested prior to shipment, and engineered for high-capacity process and fugitive emissions control.
Product Code: NSSA
The SteriSpace® YFS CATOX Electric Recuperative Catalytic Thermal Oxidizer is a fully electric EtO and PPO emissions abatement system designed for safety, reliability, and energy efficiency. Using compressive heat and catalytic oxidation, the system reduces Ethylene Oxide to 5 PPB and Propylene Oxide to 10 PPB residual levels. Built with all stainless-steel components and a gas-tight design, YFS CATOX requires no gas train and minimal maintenance. Each unit is shop-assembled, pre-wired, tested prior to shipment, and engineered for high-capacity process and fugitive emissions control.
Key Features: Operational Safety
- No gas train required
- Fully enclosed and insulated design with no external hot components
- Lockable electrical service disconnect included
- Remote-mount electrical controls (indoor or outdoor)
- Catalyst housing with handholes for vacuum removal
- No confined space permit required for catalyst replacement
Industrial Hygiene
- Gas-tight fan, reactor, piping, and heat exchanger
- Pressure- and vacuum-rated piping throughout
- Designed in accordance with ASME, ANSI, and NEC codes
- High static pressure fan for wide-area fugitive emissions control
- Standard exhaust stack discharge configuration
Reliability & Construction
- All stainless-steel fan, heat exchanger, reactor, and piping
- Premium fan and motor assemblies
- VFD and PLC control system supplied on every unit
- Shop-assembled, pre-wired, and factory tested
- Fully encased components to protect against weather and environment
Energy Efficiency
- TurboBlower combines air transport and heating functions
- High-efficiency close-coupled heat recovery exchanger
- Fully electric operation—no natural gas required
- Complete insulation minimizes thermal losses
- Eligible for local, state, and federal energy incentives
- Green power grants available for replacing gas-fired oxidizers
Specification Details
- Model Number: SteriSpace CC Model line.
- Applications: Ethylene Oxide and Propylene Oxide Abatement Systems. Process and fugitive fumes can be abated.
- EtO/PPO Reduction: Capable of reducing EtO to 5 PPB residual. PPO to 10 PPB residual.
- Technology: Uses Compressive Heat to heat airstream.
- Magnitude: As required for total destruction.
- Airflow Capacity: 100 thru 10,000 CFM
- Dimensions and Weight : Variable based on model/capacity
- Power Requirements: 3 Phase or 1 Phase, 60 Hz, 208-240 VAC or 440-480 VAC.
- Noise Level: Typically less than 75 dB
- Included Items: Electric service disconnect, mechanical flanged connections.
- Deployment Options: Integrate with Water Balancer/Peak Shaver, Wet or Dry Scrubbers.
- Maintenance: Change catalyst 1x/5 years, annual lubrication required. System does not use filters.
Q: What emissions can the SteriSpace CATOX system abate?
Q: What residual levels can the system achieve?
Q: What maintenance does the system require?
- It is designed for Ethylene Oxide (EtO) and Propylene Oxide (PPO) process and fugitive fumes.
Q: What residual levels can the system achieve?
- It reduces EtO to 5 PPB and PPO to 10 PPB.
Q: What maintenance does the system require?
- Catalyst replacement every five years and annual lubrication. The system does not use filters.
