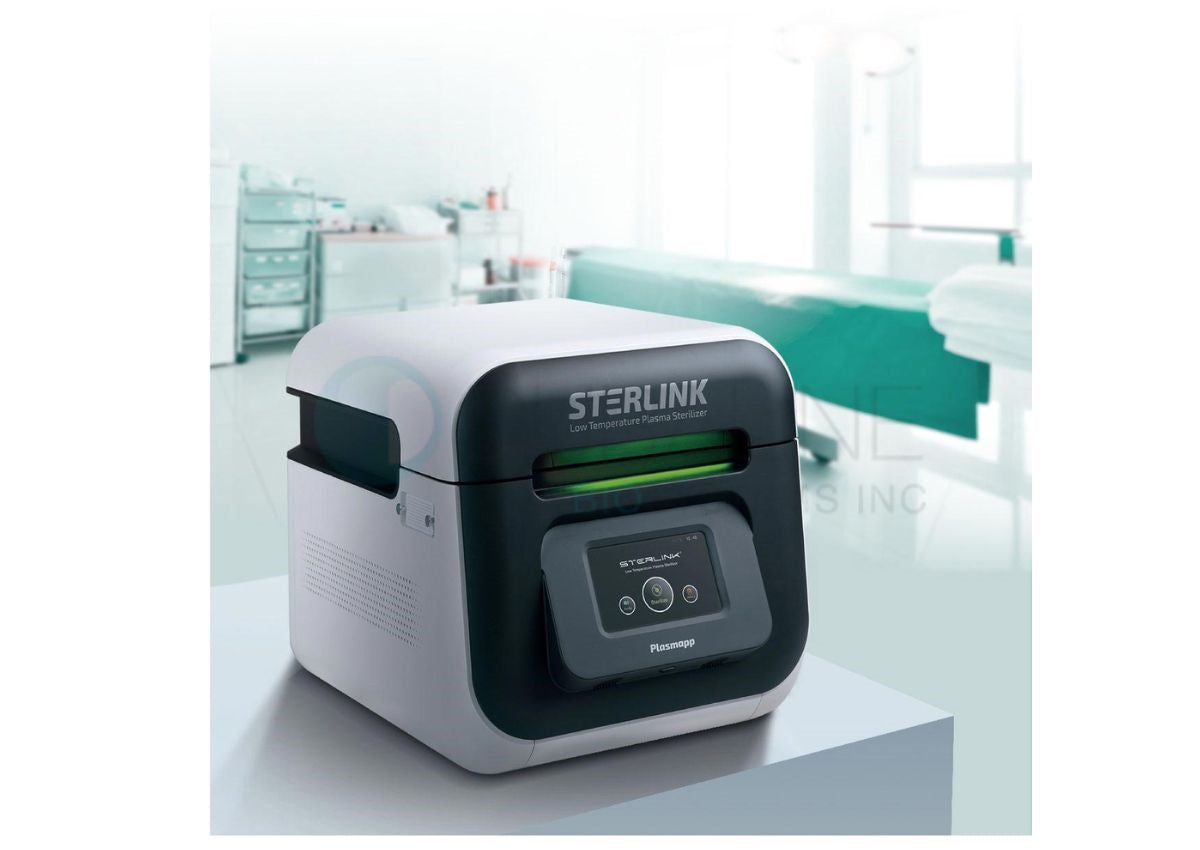

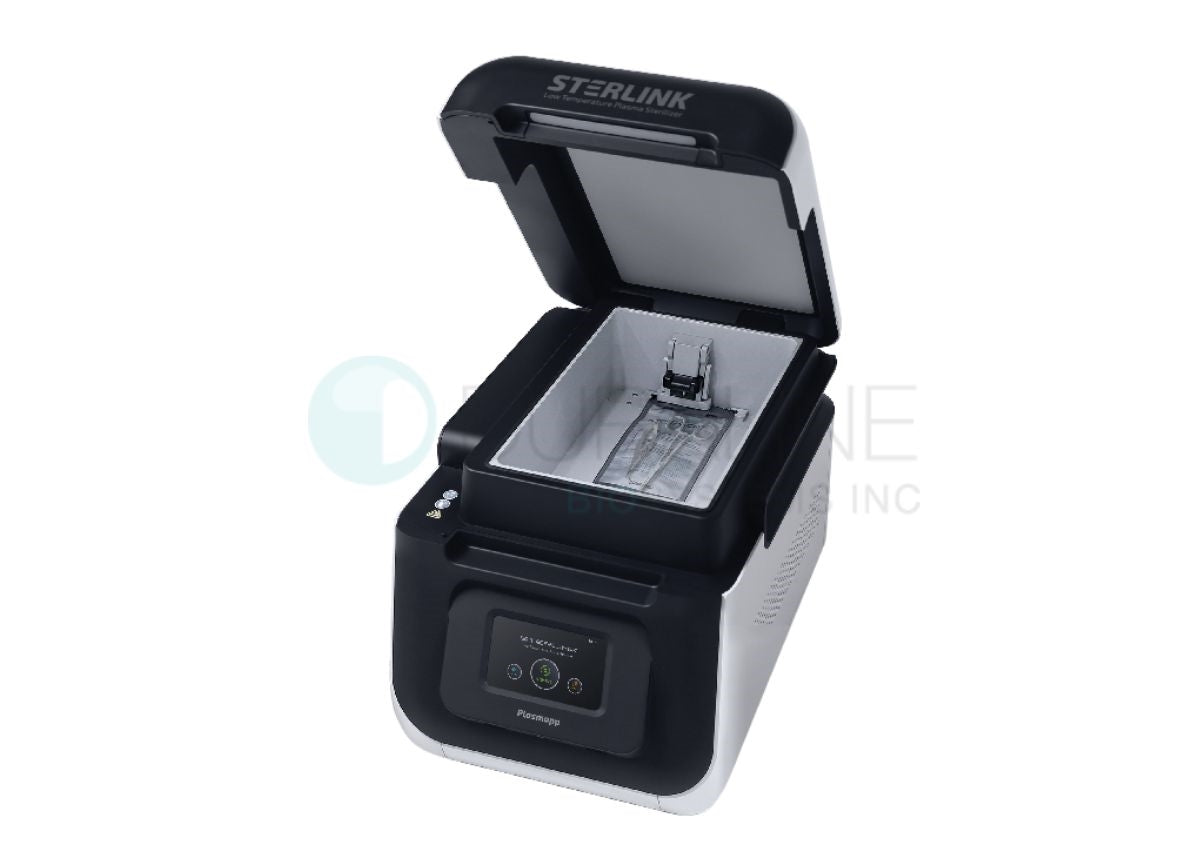

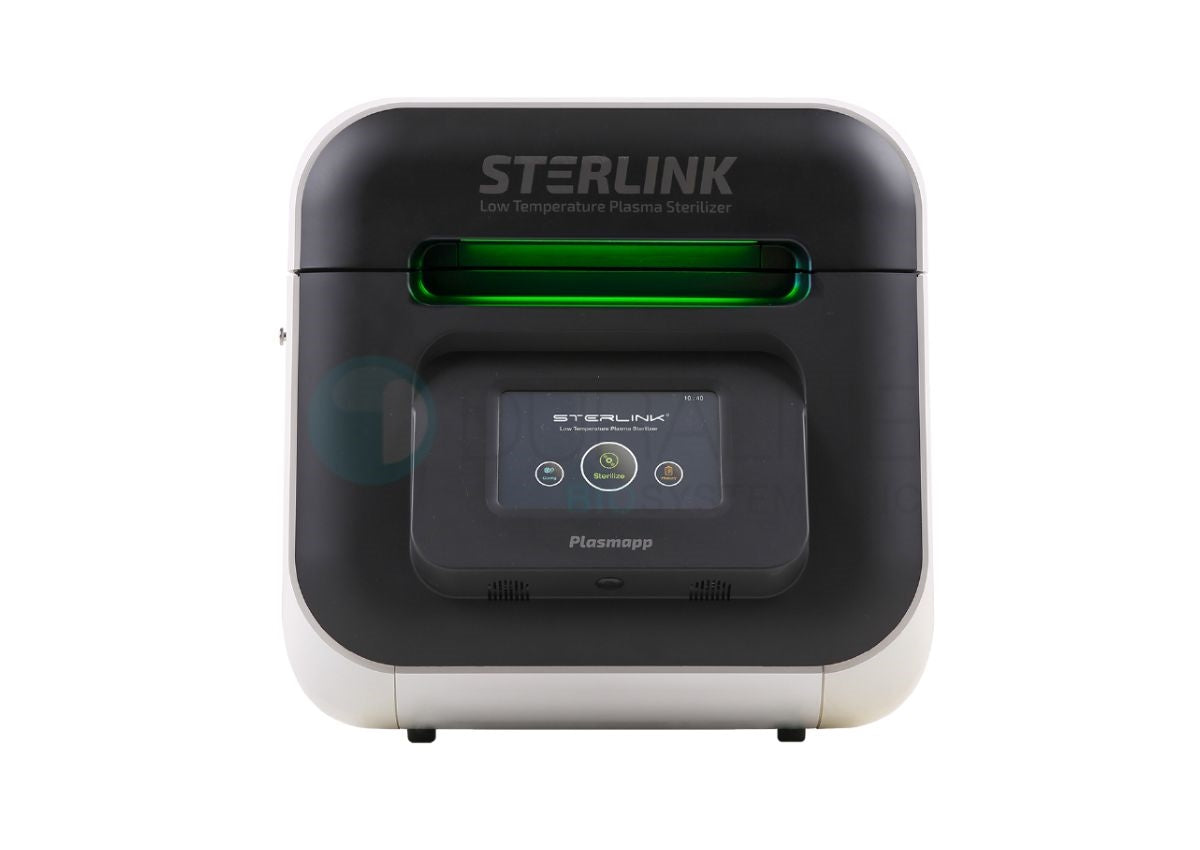

The Sterlink FPS-15s Plus is an FDA approved low temperature plasma sterilizer for a wide range of medical devices. It has the quickest sterilization time of just 7 minutes.
The world’s first direct injection pouch-type patented sterilization technology has been applied.
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
STERLINK™ verifies sterilization performance through the following lumen tests:
Single-channel lumen claims for STERLINK™
Features & Benefits:
Sterlink includes Instrument Tracking System (ITS™)
510(K) clearance for STERLINK sterilizer system of Plasmapp (K212200 / K212193 / K212198)
The world’s first direct injection pouch-type patented sterilization technology has been applied.
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
STERLINK™ verifies sterilization performance through the following lumen tests:
Single-channel lumen claims for STERLINK™
- Ø0.7 x 500mm Stainless steel
- Ø2.0 x 1,500mm Stainless steel
- Ø1.0 x 2,000mm PTFE
Features & Benefits:
- Direct sterilant injection enhances sterilization efficiency.
- Direct vacuum pumping shortens purification process time. ˙
- Independent pressure control allows unique sterilization cycle including compression process. ˙ Compression maximizes sterilization efficiency to obtain 7 minutes cycle.
- Impermeable pouch allows direct sterilization with compression process and vacuum sealing after the cycle. ˙
- Vacuum sealing visualizes sterile condition which extends shelf life of sterilized devices and provides advanced infection control solution
Sterlink includes Instrument Tracking System (ITS™)
- Equipment tracking using barcode
- Real-time monitoring to check the STERLINK™
- Provide the latest software updates remotely
510(K) clearance for STERLINK sterilizer system of Plasmapp (K212200 / K212193 / K212198)
- Size (W x D x H): 433 x 614 x 437mm / 17" x 24.2" x 17.2"
- Chamber (W x D x H): 264 x 410 x 125mm / 10.4" x 16.1" x 4.9"
- Volume Capacity: 14L / 3.7 gallons
- Diagonal Length (Chamber): 47cm / 18.5"
- Vacuum Pump: Pump built-in type
- Weight: 67kg / 148 lbs.
- Cycle Time
- Pouch Mode: STERPACK™ : 7min.
- Pouch Plus Mode: STERPACK™ Plus : 14min.
- Chamber Mode: STERLOAD™ Plus : 36min.
