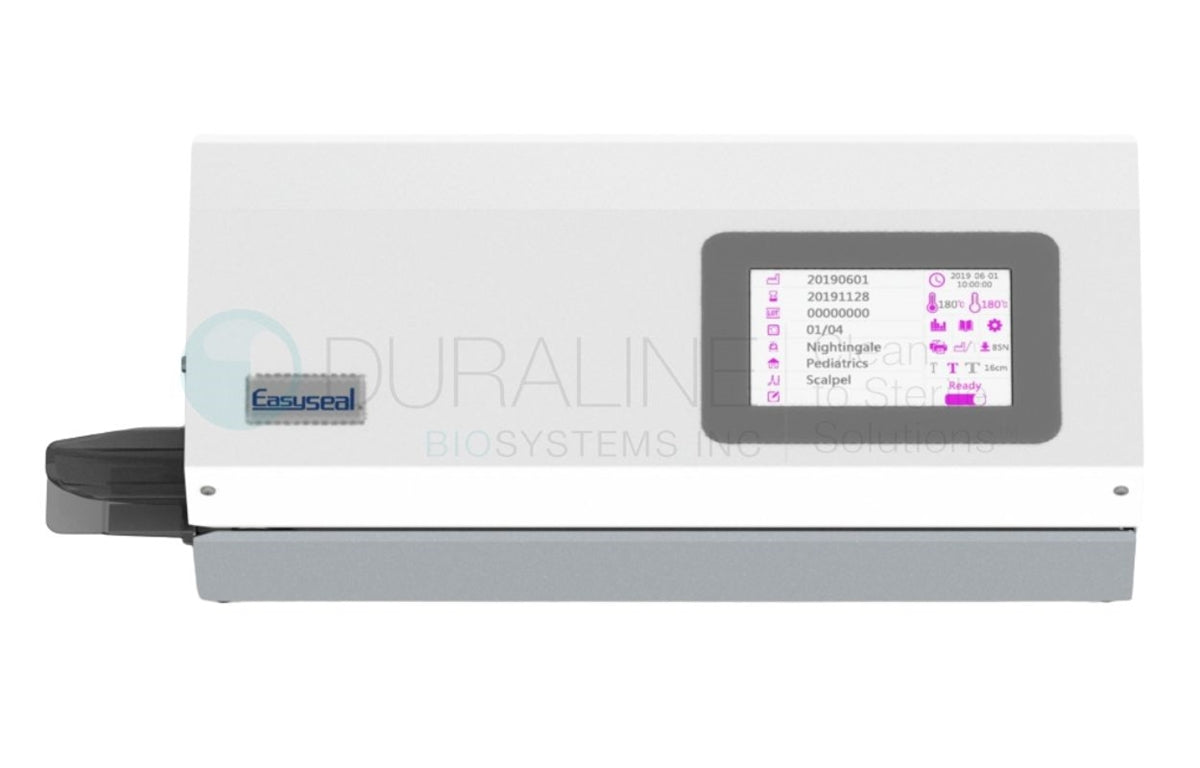

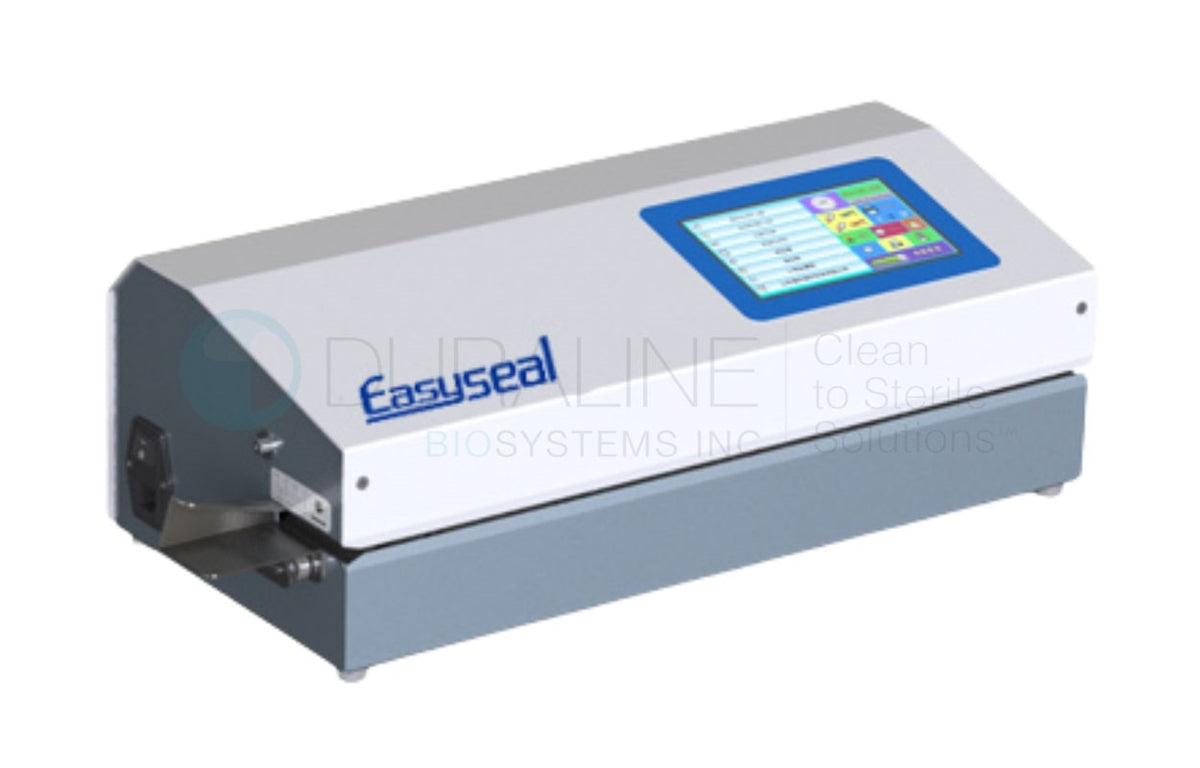

EasySeal Automatic 7" LCD Touchscreen Heat Sealer w/ Printer, 12mm Seal Width, Rotary
EF101-CR
Couldn't load pickup availability
Product code: NES-EF101-CR
Sealing Printing Machine with Touch Screen (Model EF101-CR)
Automatic Touchscreen Sealing Printing Machine is equipped with a 7-inch colored capacitive LCD touch screen, offering a graphical user interface for seamless operation. It features an in-built clock, parameter database, and automatic storage functions for convenient and efficient usage. The machine supports wireless router connectivity for recording and storing sealing parameters, ensuring future reference and follow-up capabilities.
Features:
-
Intelligent Design:
- Random parameter setup with a large-font printing option.
- Built-in forward and backward counters for precise sealing quantity statistics (0–9999).
- Automatic fault alarm and process detection for secure operation.
-
Precision Control:
- Microcomputer-controlled temperature with ±1% accuracy, adjustable between 60°C and 220°C.
- Automatic shutdown if sealing temperature exceeds ±4°C for optimal sealing quality and safety.
-
Enhanced Performance:
- Rapid heating and auxiliary cooling mechanism for efficient temperature conversion.
- Floating constant pressure lamination structure for handling 3D bags and varying thicknesses.
Technical Specifications for Touchscreen Benchtop Sealing Printer
- Sealing Speed: 32.8 ± 1.6 ft/min
- Sealing Width: 0.47 in
- Sealing Margin: 0–1.38 in (adjustable)
- Temperature Range: 140°F to 428°F
- Temperature Accuracy: ±1%
- Power: 500W
- Weight: 33 lbs
- Dimensions: 22.3 x 9.3 x 7.5 in
- Input Power Supply: Configurable (based on customer requirements)
- Screen Type: 7-inch colored capacitive LCD touch screen
- Printing Features: Large-font printing; supports symbols, numbers, special characters, and Chinese
- Safety Features: Overheat protection, automatic fault alarm, process detection
- Counters: Forward and backward counters for sealing quantity (0–9999)
- Volts: 115v
