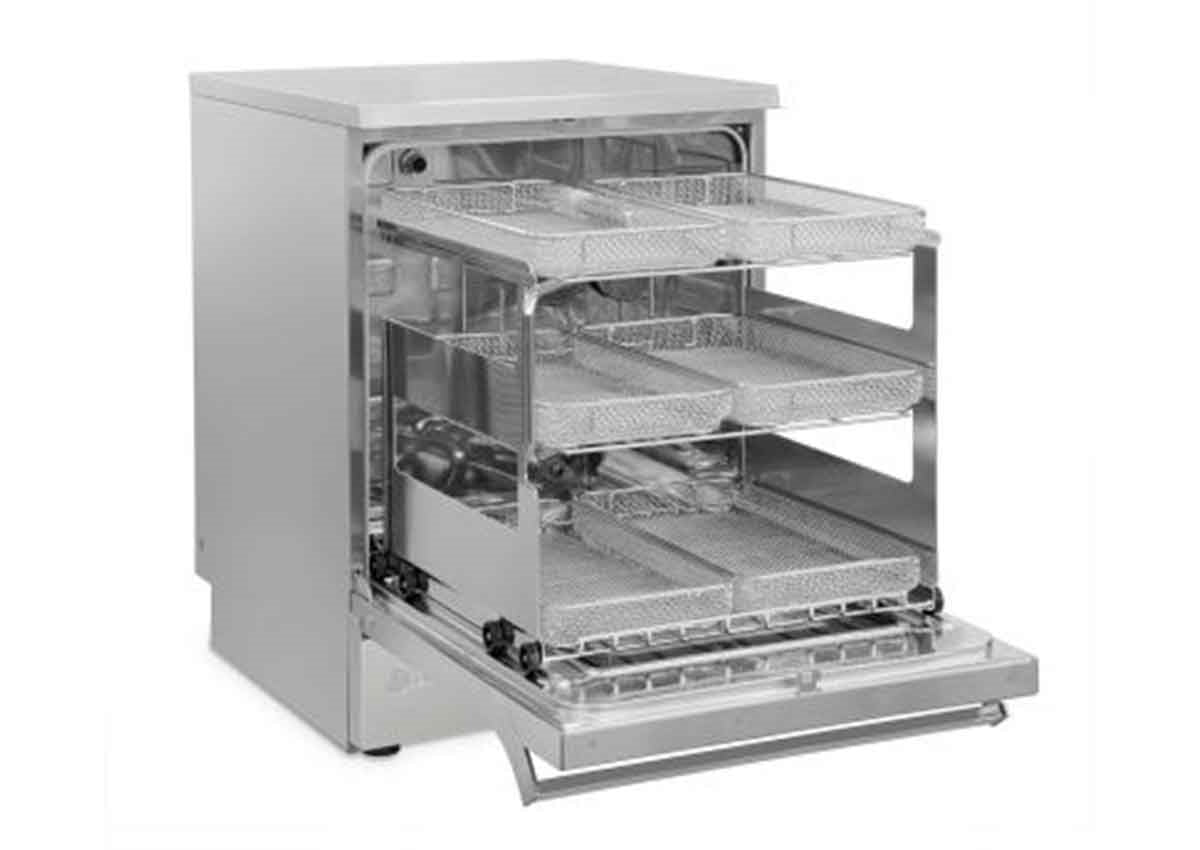

Instrument Washer Disinfector Steelco DS 500 SC

Specially designed for installations with limited space, this model works with washing injection system on two levels. This new generation of compact washer disinfectors shares the same technology of our high capacity CSSD equipment, for significative improvements in terms of cleaning quality and thermal disinfection performances.

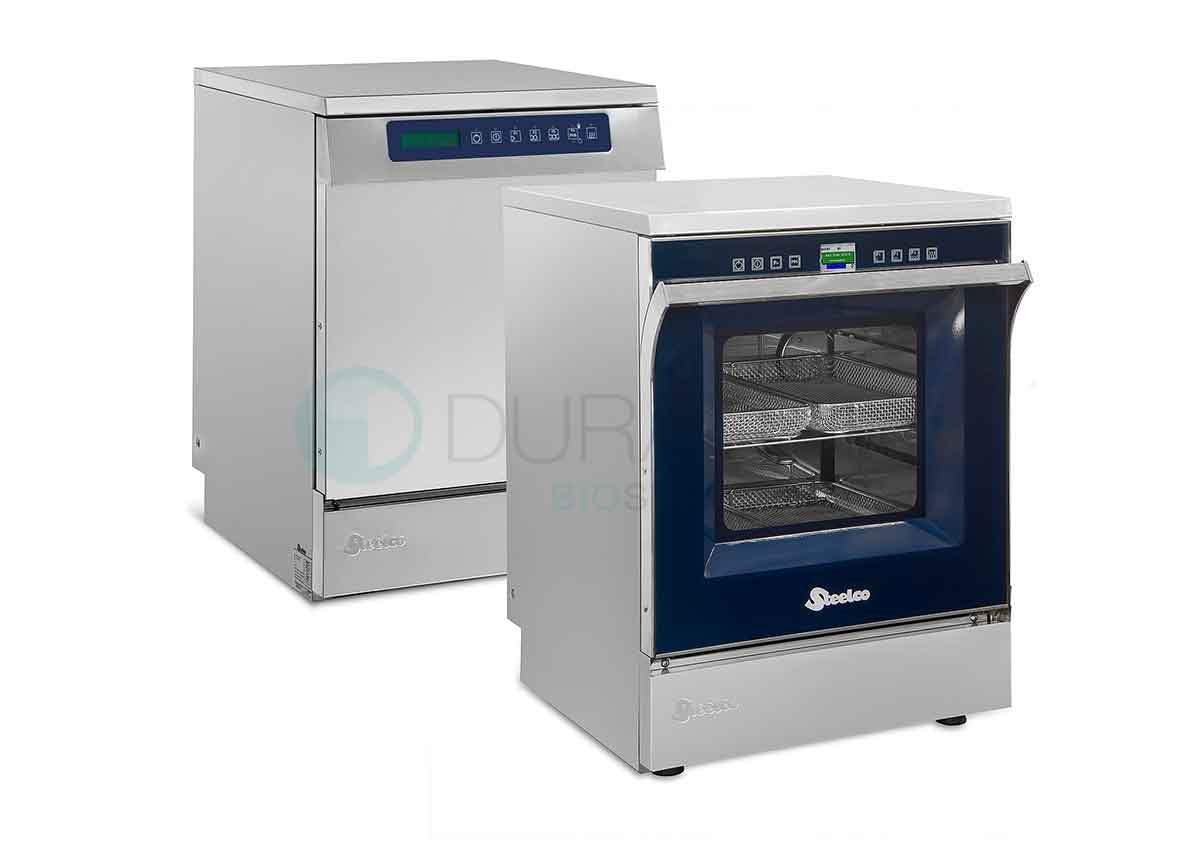

The DS 500 CL is available in two versions: Full glass and stainless steel door

Image	DS 500 CL Version	Control Panel	Connections

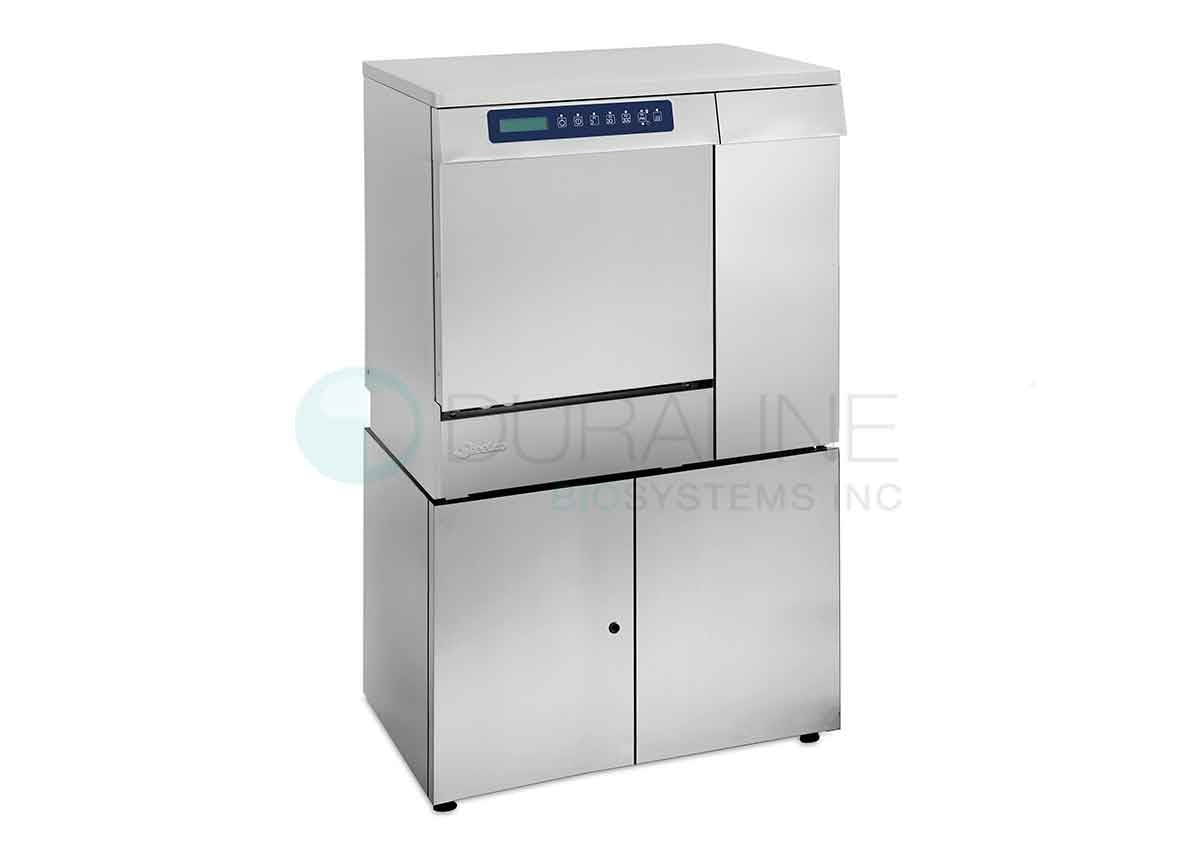

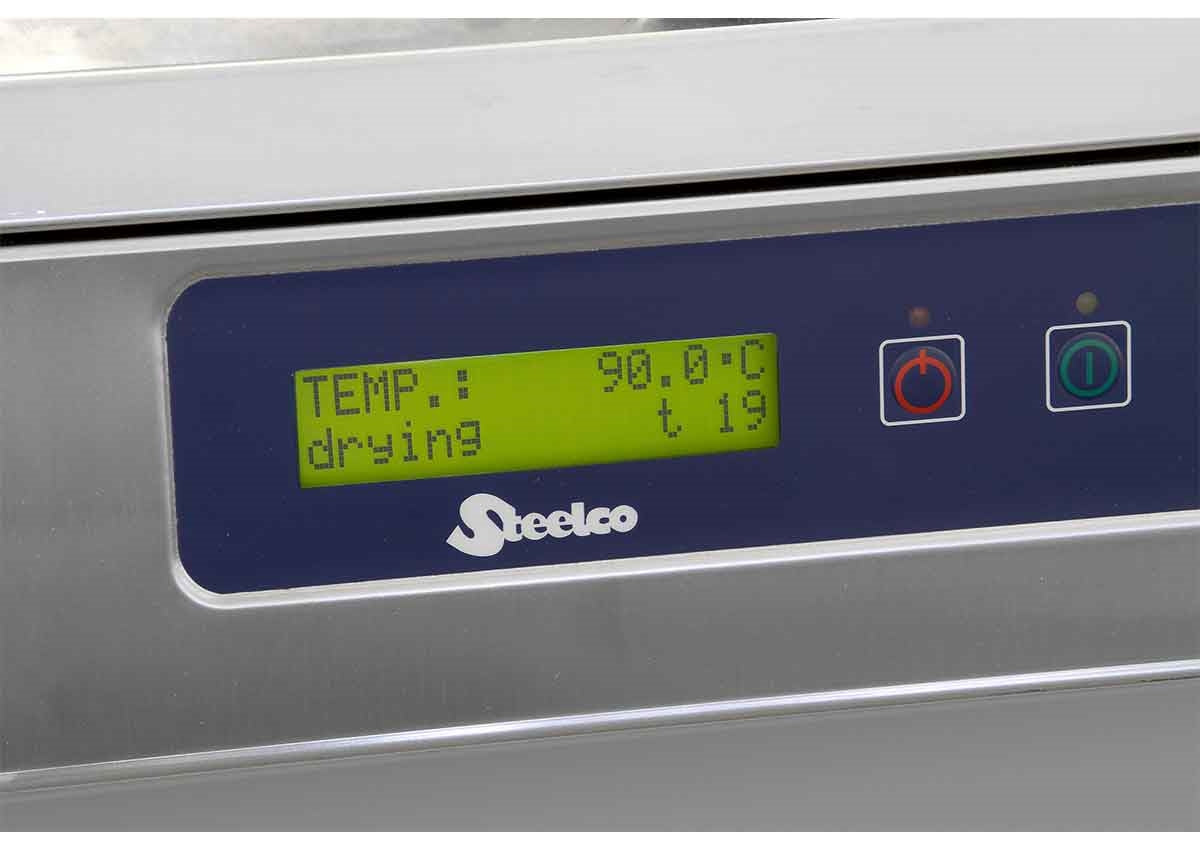

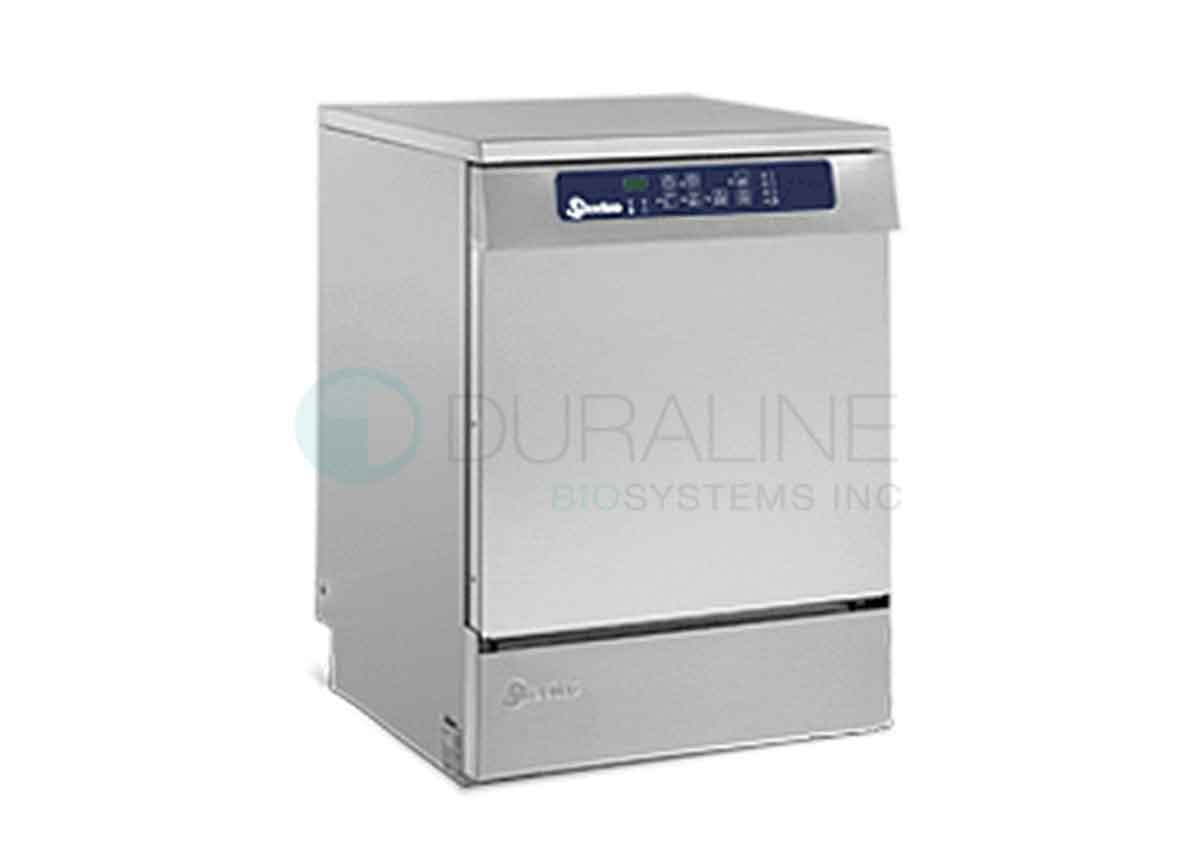

	Stainless Steel Door	LCD display control panel with 40 washing and thermodisinfection programs for surgical instruments: 20 standard pre-programmed cycles and 20 additional, available for customization.	RS 232 port dedicated for printer or PC connection to monitor and validate washing cycles and/or data storage

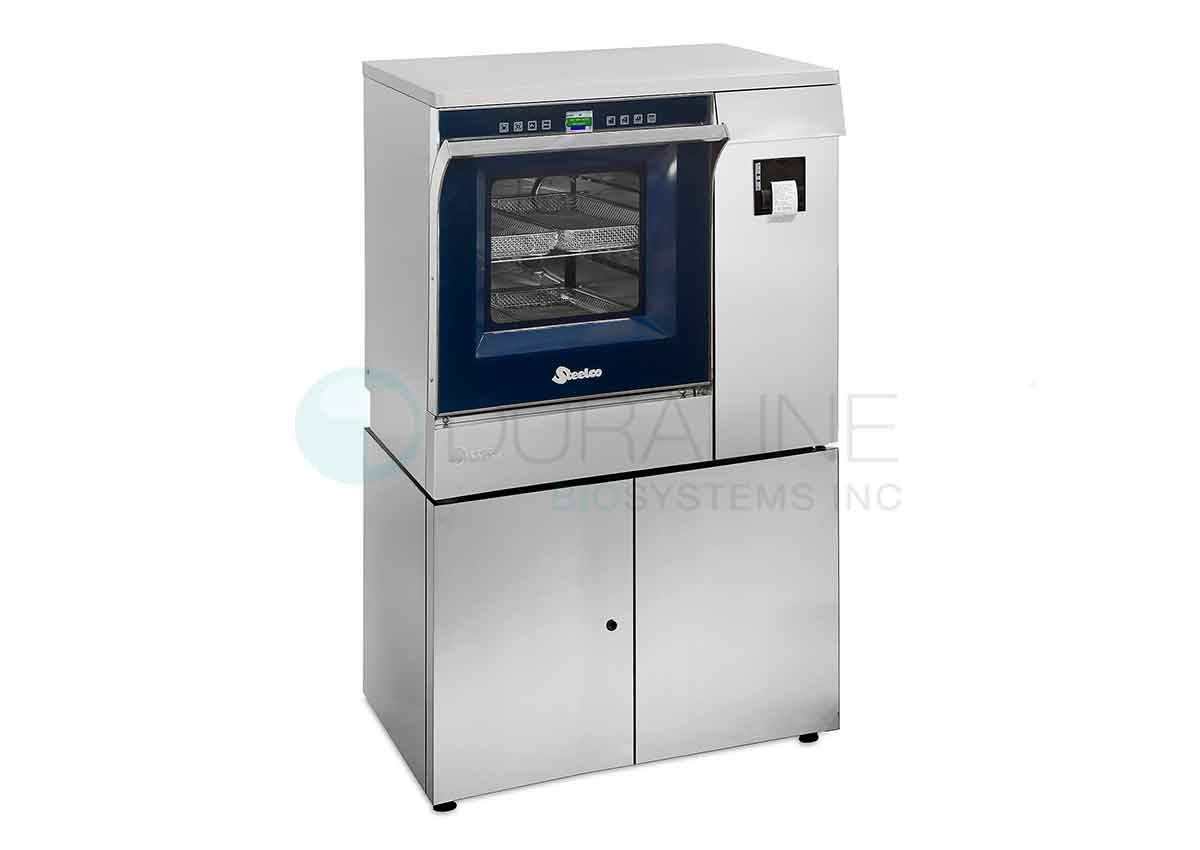

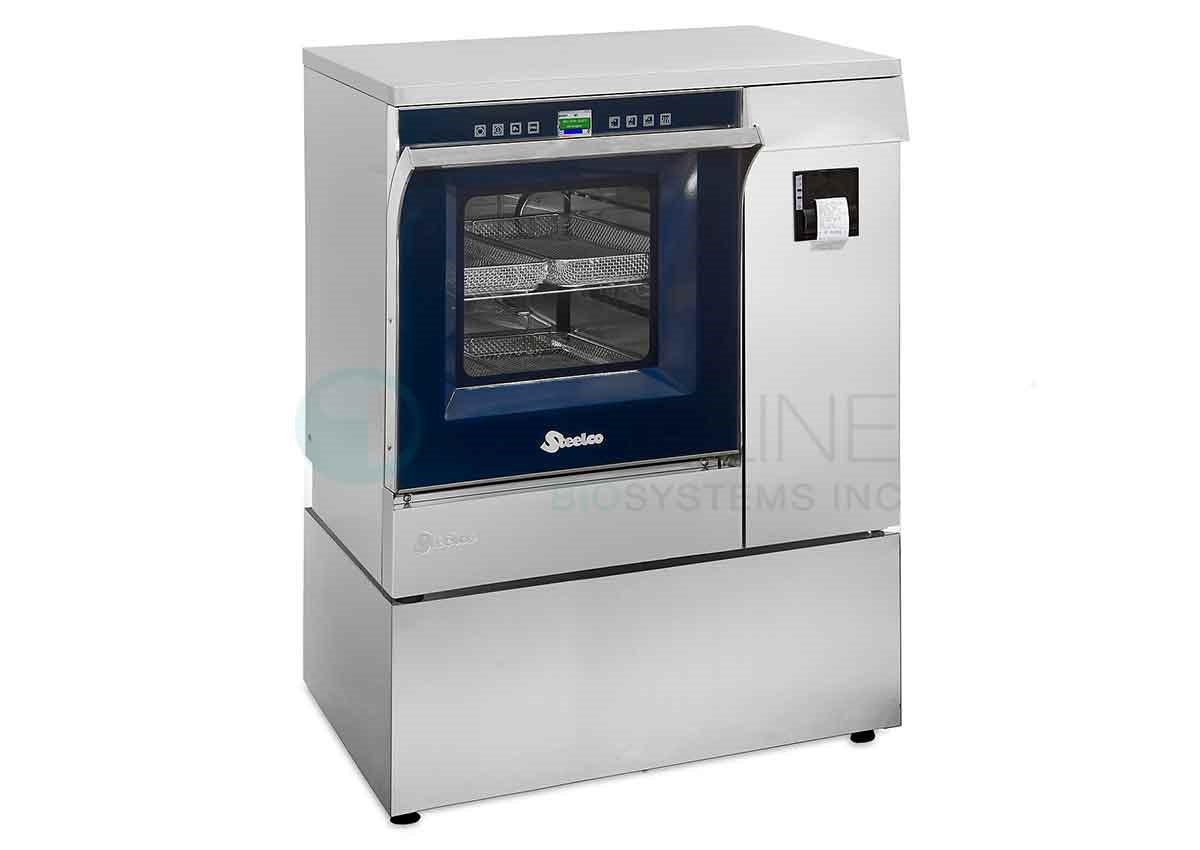

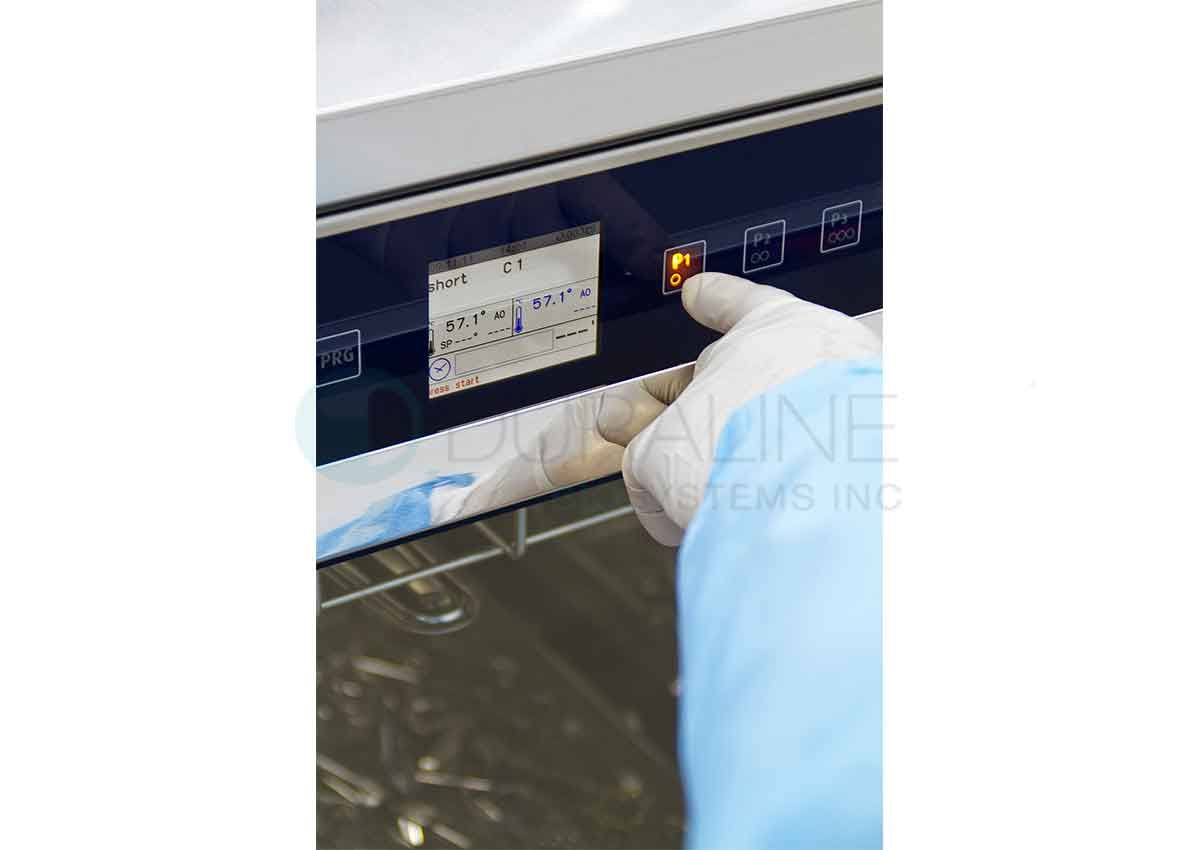

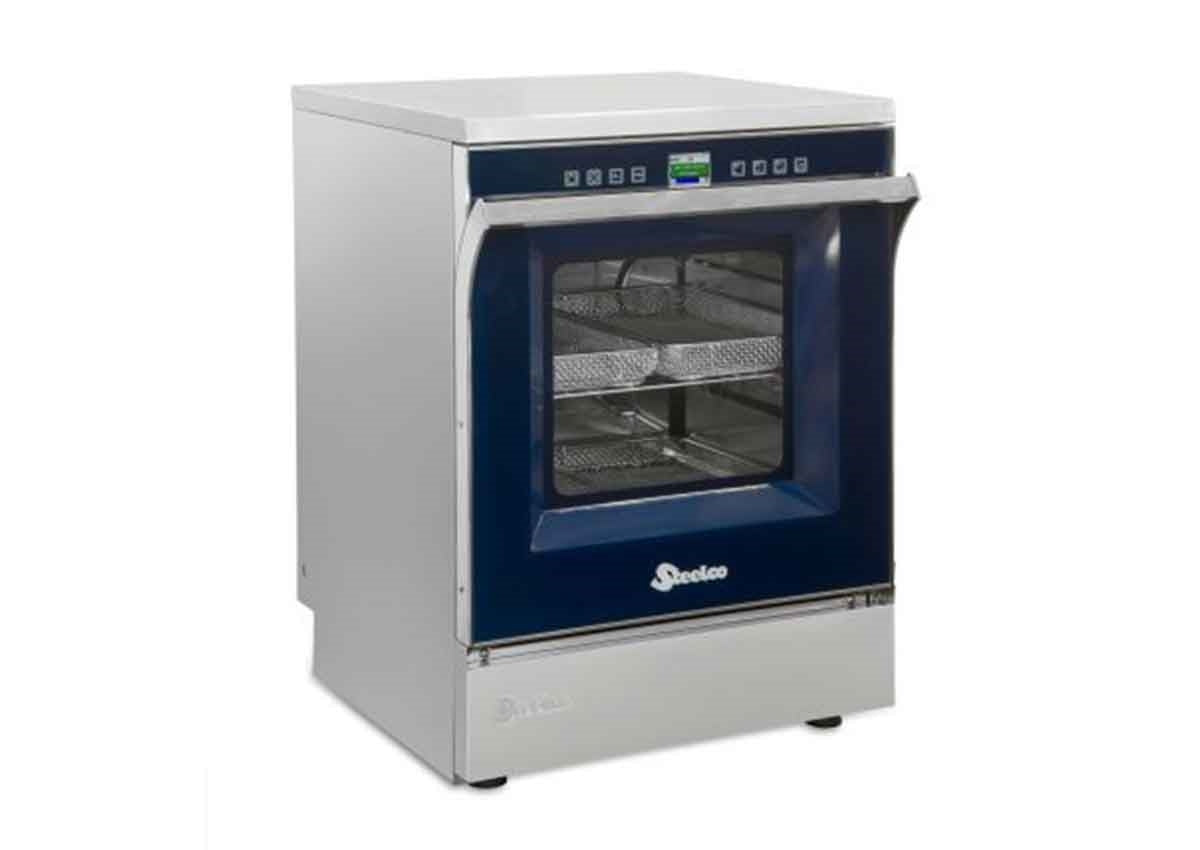

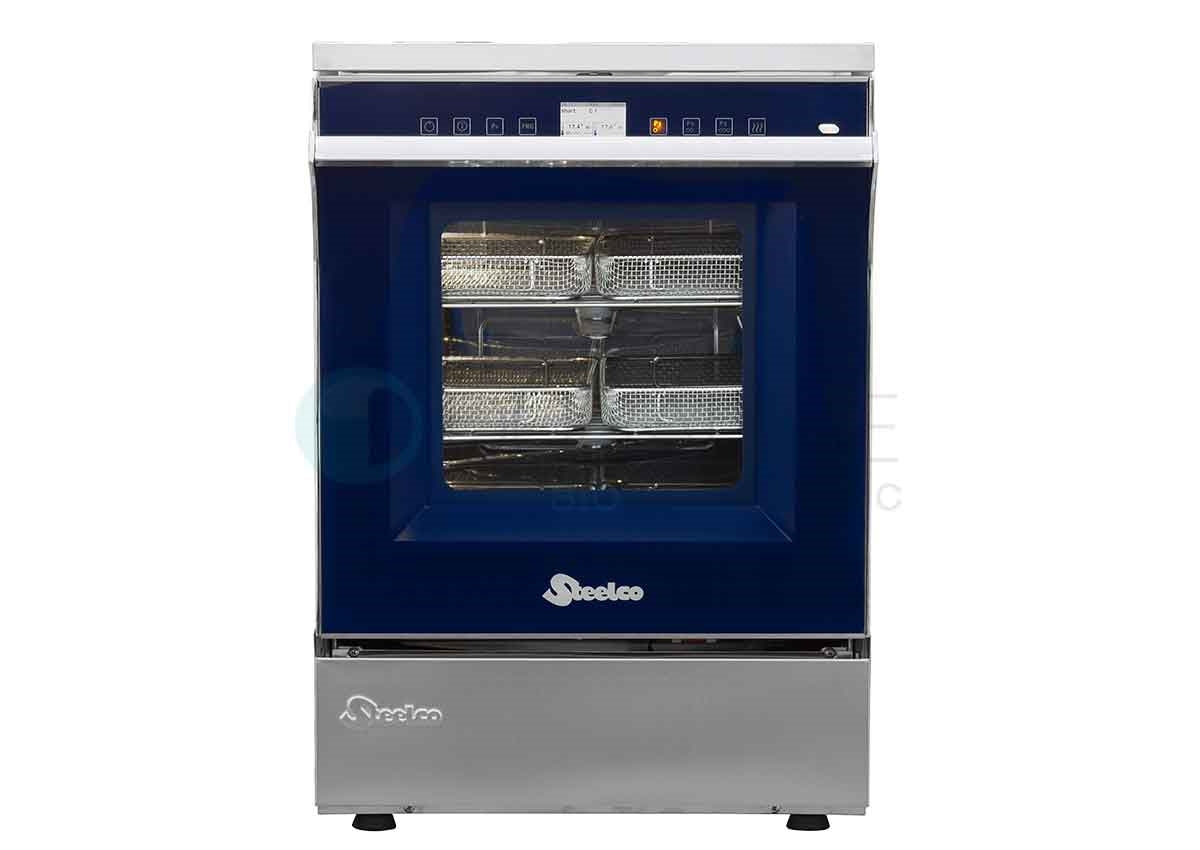

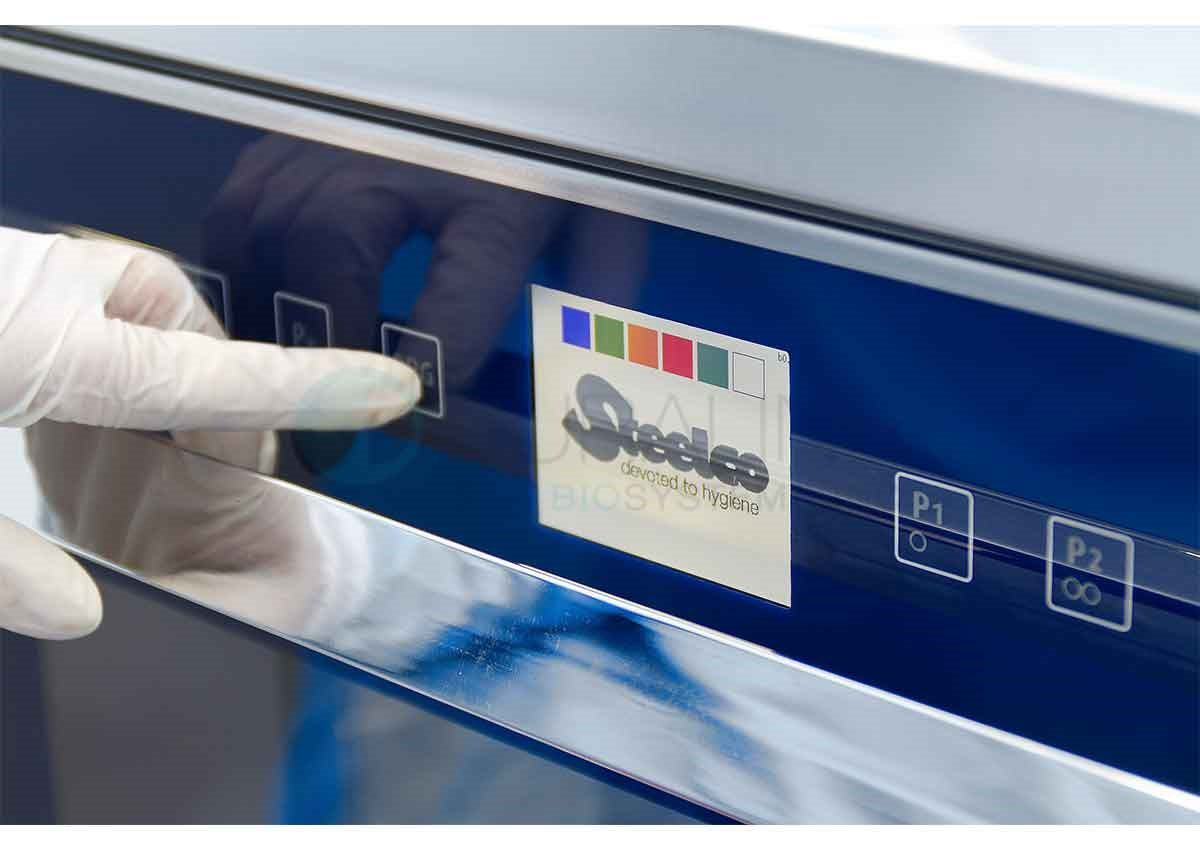

	Full Glass Door	Soft touch full glass control panel with graphic color LCD display 40 washing and thermal disinfection programs for surgical instruments: 20 standard pre-programmed cycles and 20 additional, available for customization	USB port on the front panel for washing cycles data storage and/or software upgrades RS 232 port dedicated for printer or PC connection to monitor and validate washing cycles and/or data storage

Features:

• Heavy washing pump to ensure high flow rate combined with effective spray pressure.
• Washing and DI disinfection temperature are fully adjustable up to 93°C. Temperature is monitored by two independent sensors.
• Standard steam condenser prevents vapours from entering into the washing area.

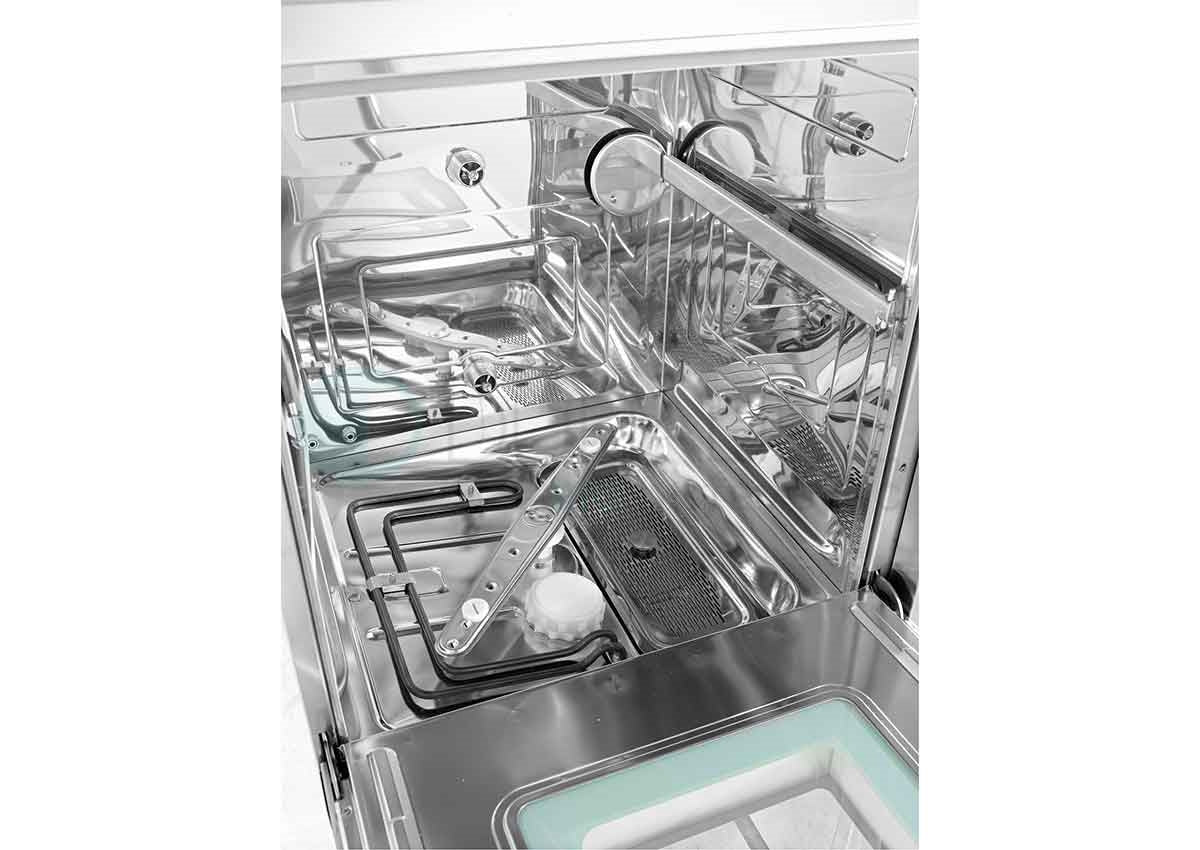

• Inner cabinet, washing arms and tank filters made of high quality AISI 316 L stainless steel.
• Two automatic liquid dispensers.
• Triple water filtering system captures residue, preventing re-circulation and extending the pump life.

• Full glass door version DS 500 SC soft touch
• 3rd Chemical dosing pump
• Boiler to pre-heat DI water (stand required)
• Extra power 8 KW to reduce cycle time
• External printer ST1
• Built in water softner
• Ethernet connection (full glass door version only)
• Light inside chamber

DS 500 can be integrated into existing furniture of treatment rooms, and also with functional side cabinets or ergonomic stands.

How to Combine Optionals Choosing the right configuration:

Type: Washers Disinfectors

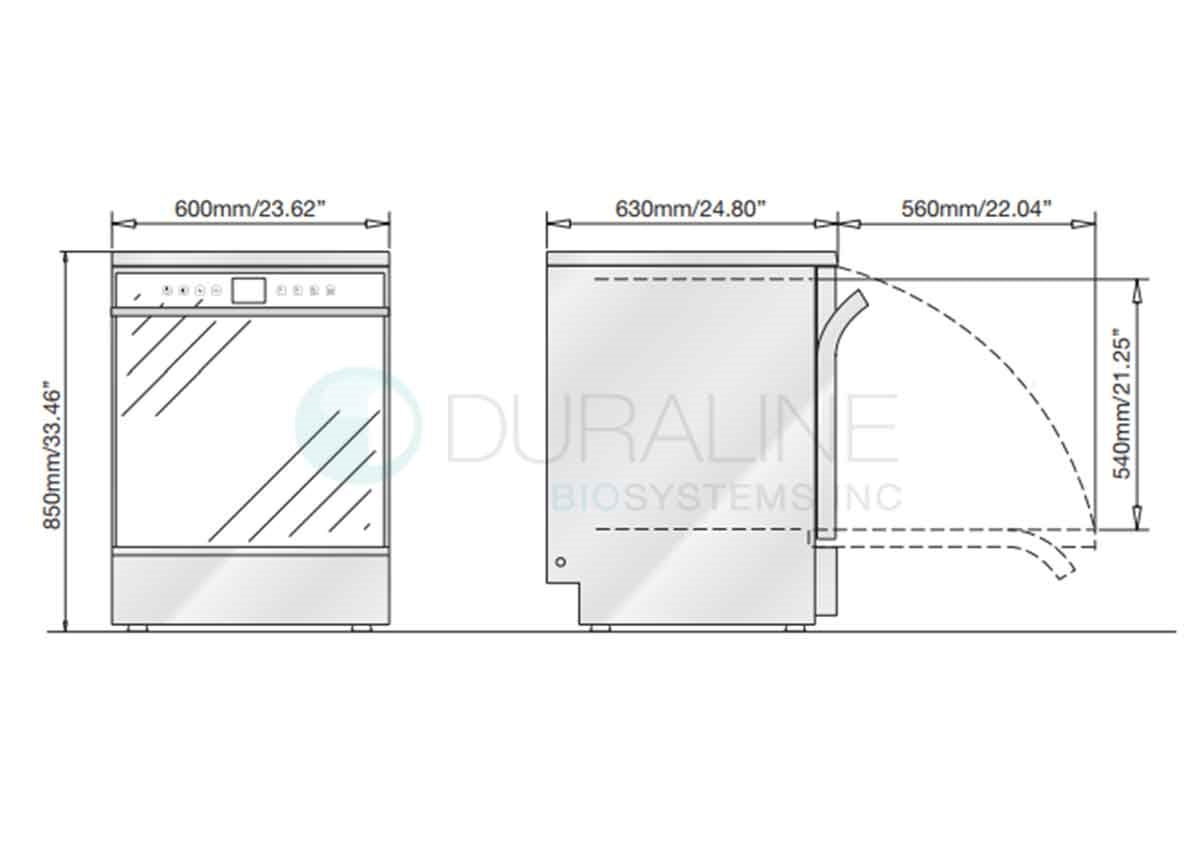

• Outside Dimensions (W x D x H): 23.62" x 24.80" x 33.46" (600mm x 630mm x 850mm)
• Volume Gal. / Liter ~ 45.17 Gal / 171 Liters

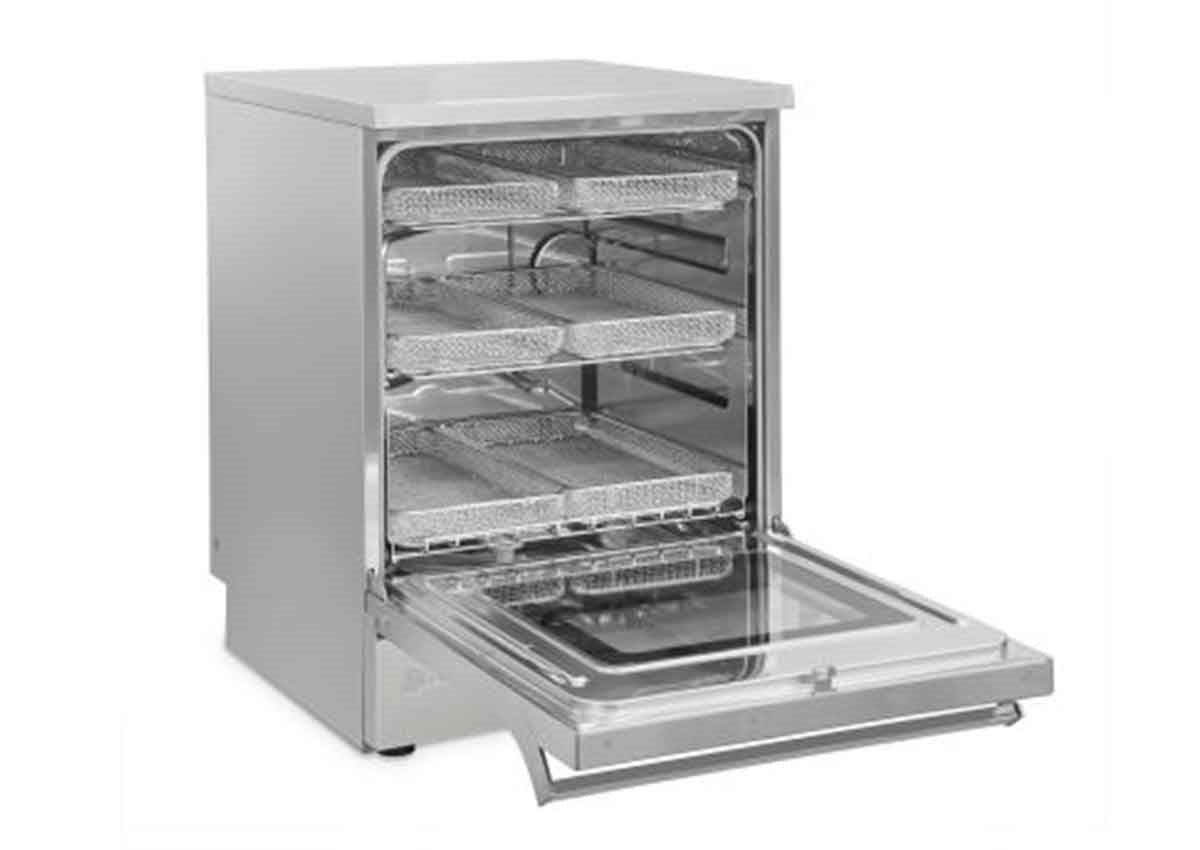

• Tray Size: For instrument trays up to 21.5” total length
• Basket volume: 39.89 Gal US / 151 Liters
• Standard Electrical Connection(International): 400V/3~+N/50Hz
• Optional Electrical Connection(North America): 208V/3~+N/60Hz - 220V/~/60Hz
• Power: 5600 W
• Pump Power: 550 W
• Permitted Room Temperature: +5°C/41°F - +40°C/104°F
• Dryer Blower: up to 150 m3/h - 5298 ft3/h
• Dryer Heating: 2000 W
