DuraMesh Custom 304 Stainless Steel Wire Mesh Basket 10" x 4" x 5"
Couldn't load pickup availability
Product code: C-DMB-1045

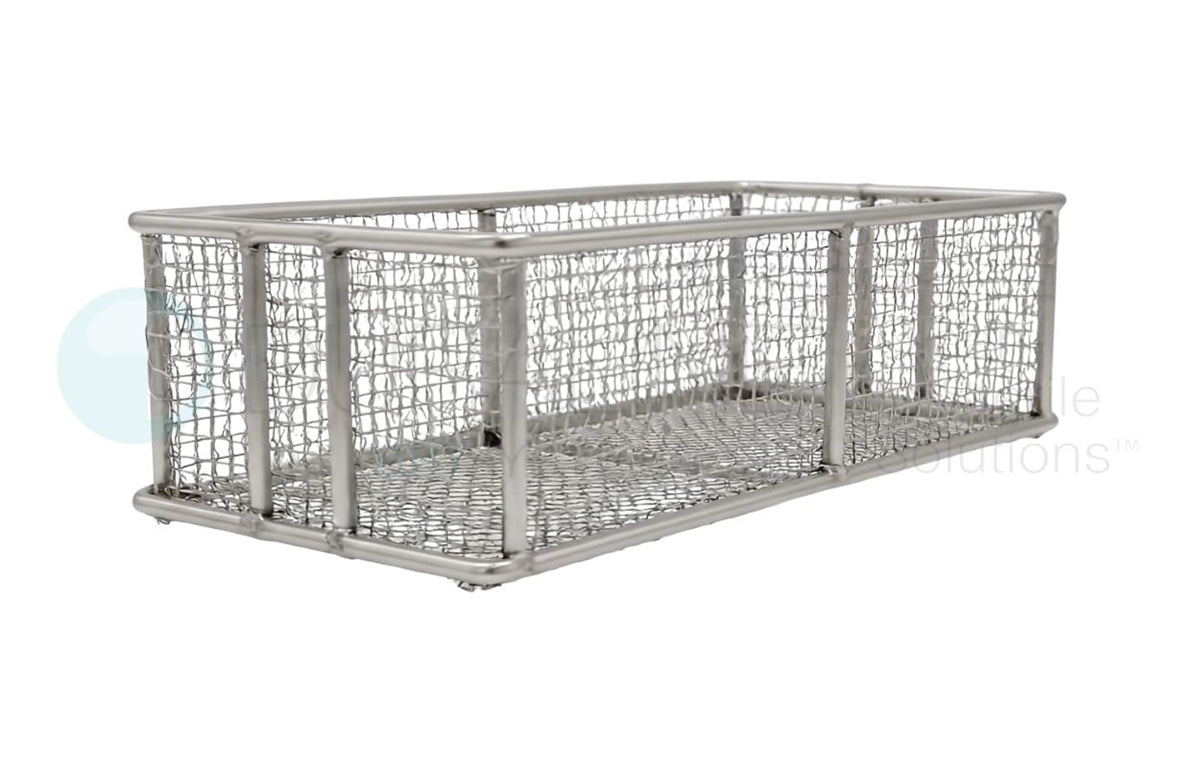

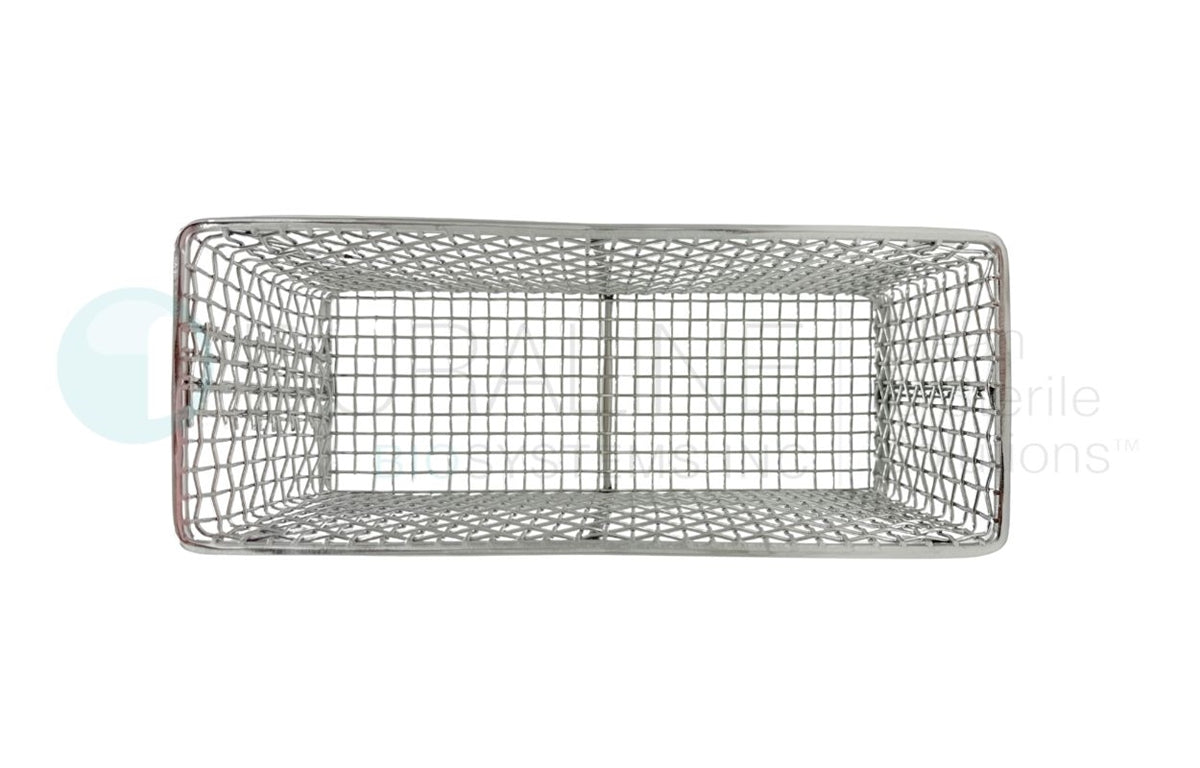

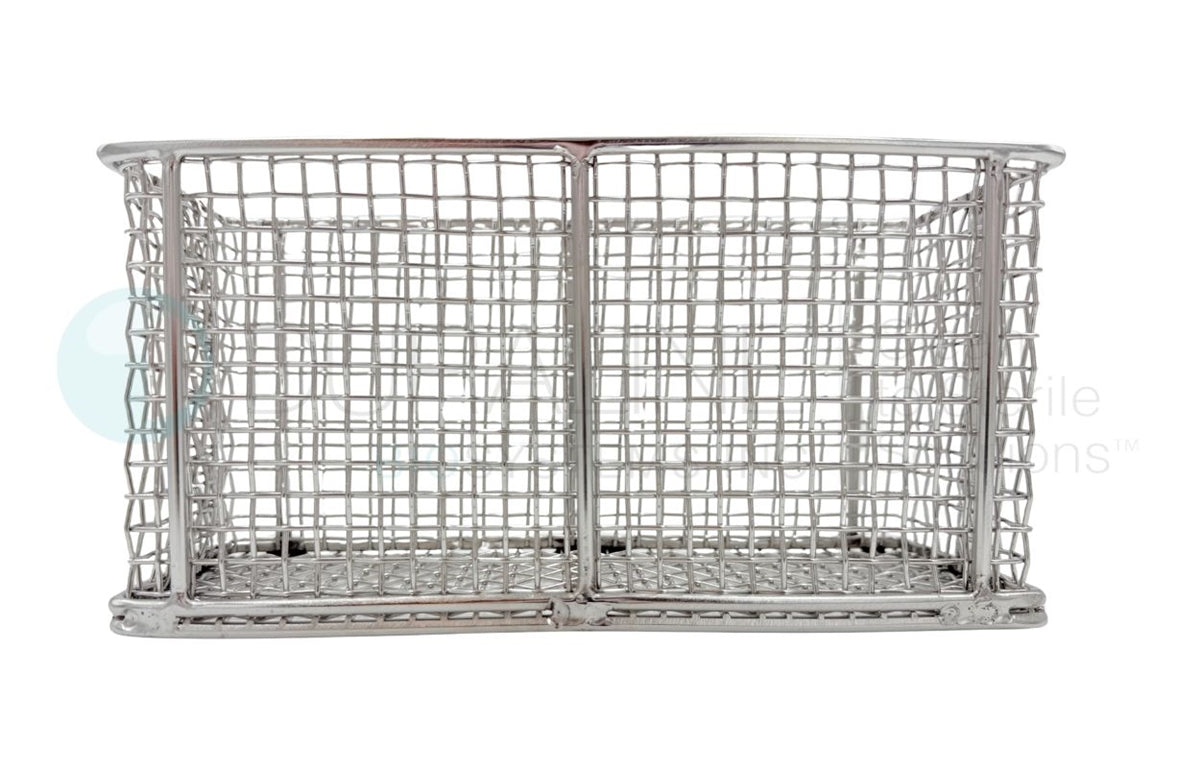

This Small Wire Mesh Basket is constructed from 304 SS and engineered for durability in washing and sterilizing environments. Featuring a 3/16" diameter rod frame with all joints TIG welded, the basket is lined with 3 mesh x .063" woven wire, fully resistance welded and ground smooth. The electro-polished finish supports cleanability and corrosion resistance. With approximate outside dimensions of 10"L x 4"W x 5"H (excluding handles), this basket is specifically designed to hang in 4-inch overflow chute tanks for efficient parts handling.
Features
- Small basket designed for 4 in. overflow chute tanks
- 304 SS construction
- 3/16" dia. rod frame
- All joints TIG welded for strength
- 3 mesh x .063" woven wire lining
- Mesh fully resistance welded and ground smooth
- Electro-polished finish
- No handles, no lid

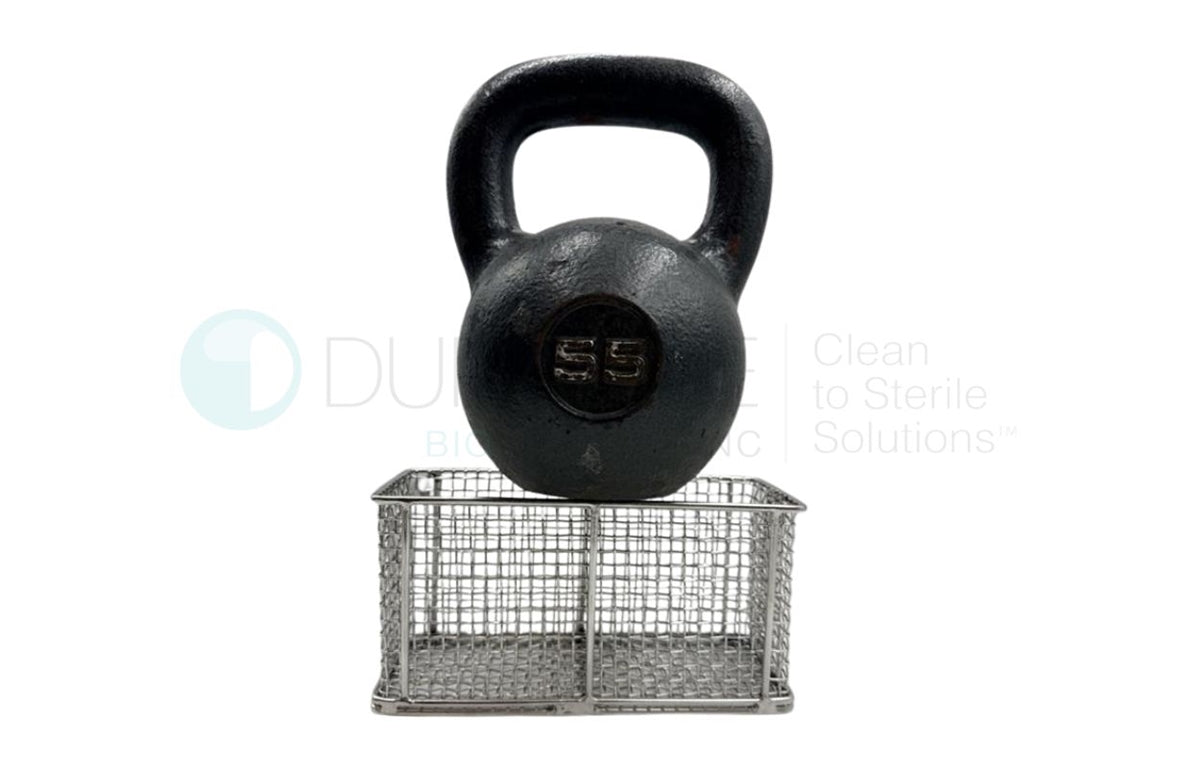

- Rigid construction supports heavy loads (demonstrated with 55lbs weight)
- Corrosion-resistant (handles moisture, chemicals, cleaning agents)
- Non-reactive (safe for medical and sanitary environments)
- Durable & strong
- Easy to clean and sanitize
- Good temperature resistance
Technical specs
- Dimensions: 10"L x 4"W x 5"H (approx., excluding handles)
- Material: 304 SS
- Mesh: 3 mesh x .063" woven wire (.270" openings, 65% open area)
- Frame: 3/16" dia. rod, TIG welded
- Configuration: No handles, no lid
- Quantity: 1 each
Q. What is this wire mesh basket used for?
A. This basket is designed for parts washing, sterilizing, and material handling, and is specifically made to hang in a 4 in. overflow chute of a tank.
Q. Will this basket fit my overflow tank?
A. The basket measures approximately 10"L x 4"W x 5"H (outside dimensions, excluding handles) and is intended for 4 in. overflow chute applications. Verify your tank dimensions before purchase.
Q. What material is the basket made from?
A. It is constructed from 304 stainless steel (304 SS) with a welded wire mesh lining.
Q. Is the basket resistant to corrosion and chemicals?
A. 304 SS provides corrosion resistance and durability for washing and sterilizing environments under normal use conditions.
Q. What type of mesh does this basket use?
A. It features 3 Mesh x .063" woven wire with approximately .270" openings and 65% open area.
Q. How is the basket constructed for durability?
A. The basket uses a 3/16" diameter rod frame with all joints TIG welded, and the mesh is fully resistance welded and ground smooth.
Q. Does this basket have handles or a lid?
A. No. This model is supplied without handles and without a lid.
Q. Is the surface finish smooth and easy to clean?
A. Yes. The basket is electro-polished and ground smooth to support cleanability.
Q. Can this basket be used in sterilization processes?
A. Yes. It is suitable for sanitizing and sterilizing applications.
Q. What industries typically use this type of basket?
A. Common uses include parts cleaning, sterilizing, coating and finishing, transport, material handling, heat treating, and related industrial processes.
Q. Is this a standard or custom basket?
A. These baskets are custom-made to meet specific application needs.
