Usage:

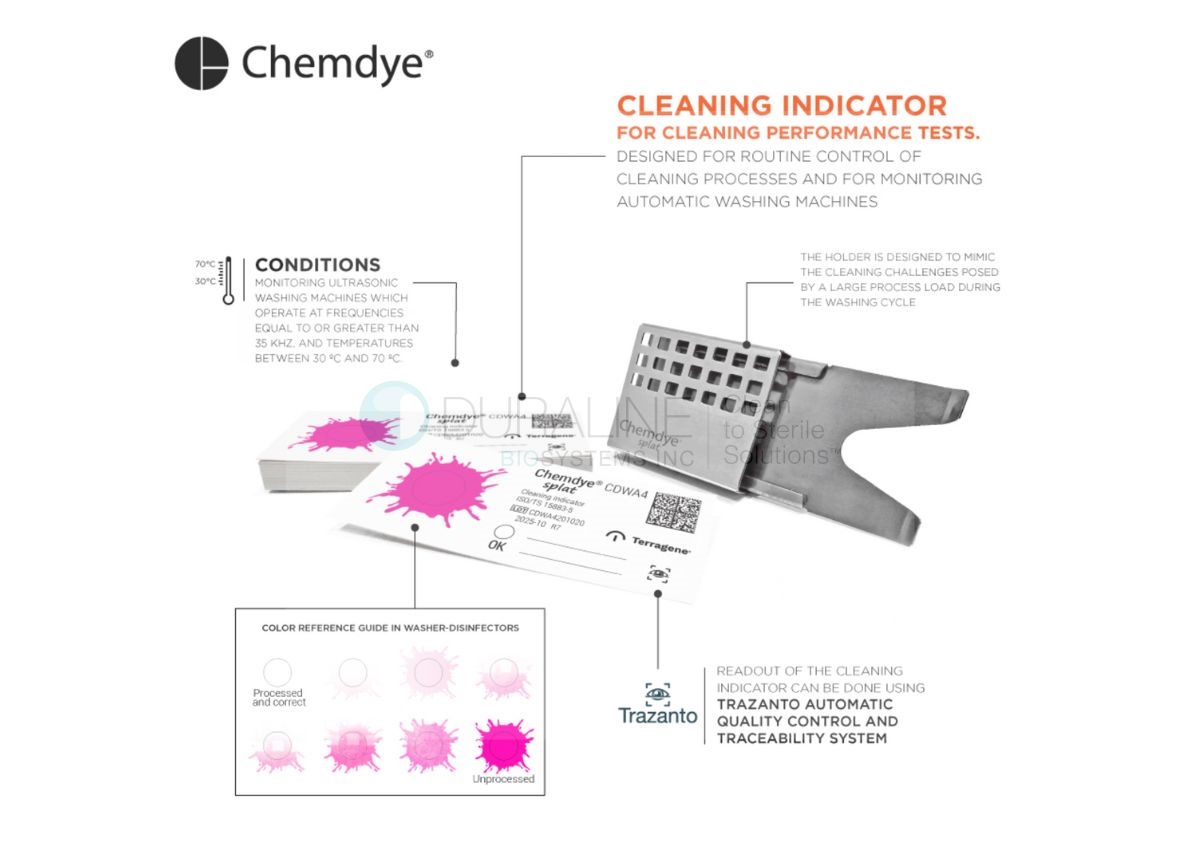

Designed for routine cleaning process control, monitors automatic and ultrasonic machines operating at 35 kHz or higher, between 30 ºC and 70 ºC.
Instructions for use
- Choose the Chemdye Splat indicator according to the desired difficulty.
- Place the indicator on the holder.
- Place the system on the tray along with the material.
- Once the cleaning cycle is over, remove the indicator.
Analyze indicators using the reference table and record results.- If unfavorable results are obtained, perform the appropriate corrective actions and repeat the washing process.

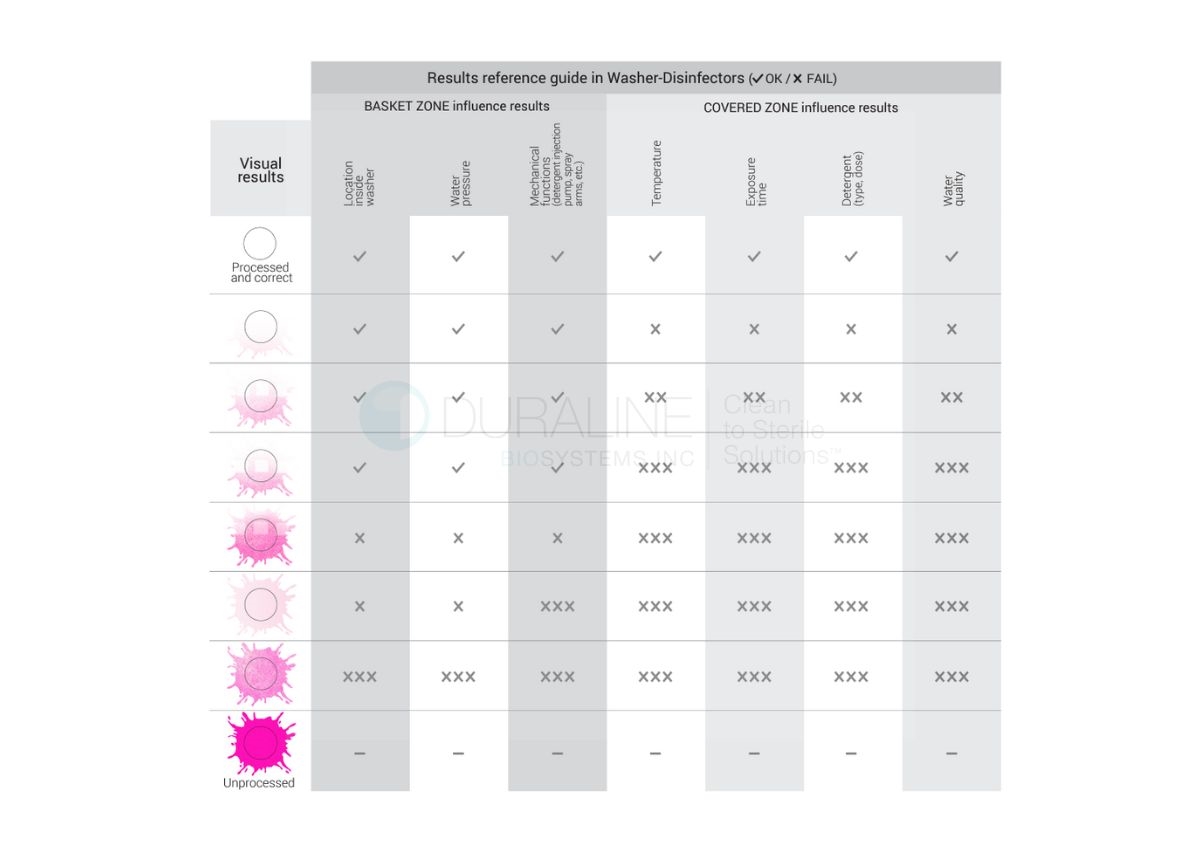

- Refer to chart
Regulation:
Complies with ISO 13485:2016/NS-EN ISO 13485:2016 and ISO/TS 15883-5:2005 standards.
Characteristics:

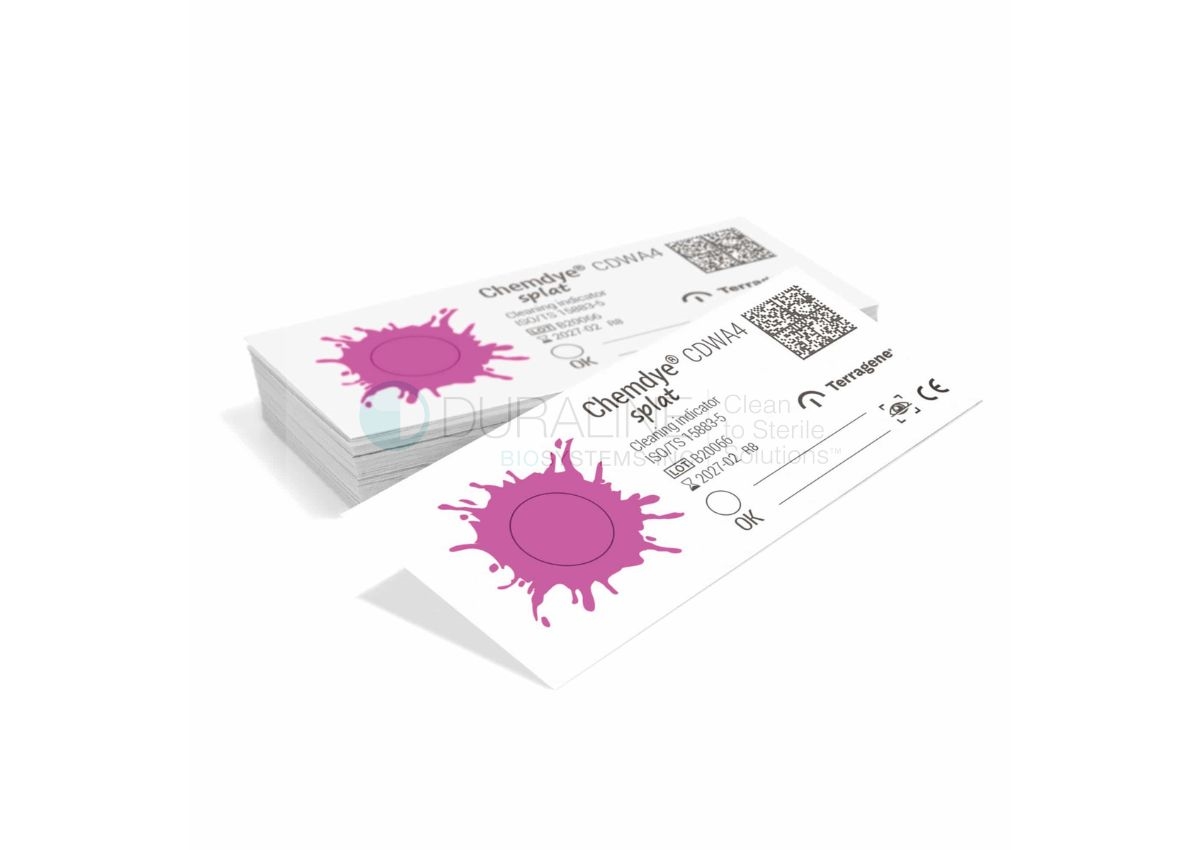

Very high challenge level, detects all factors influencing cleaning process. Initial color: fuchsia. Size: 70 mm x 30 mm. Synthetic temperature-stable support.
Result and Action:
Eliminates fuchsia organic substances. Interpret results visually using the guide. Check detergent, time, temperature, load position, and machine condition for unfavorable results.
Environmental Conditions:
Manufactured at 15-30 ºC, RH 30-80%. Store at 10-30 ºC, RH 30-80%, in dark place in original package.
Storage and Transportation:
5-year shelf-life. Transport in closed, strengthened boxes. No health risk during transportation.
Optional Integration:
Can be used with Trazanto Automatic Quality Control and Traceability System, as per device manual.
