Usage:
Engineered to securely hold Chemdye cleaning indicators, facilitating routine control of cleaning processes in ultrasonic washers.
Applicable Regulation:
Crafted under ISO 13485:2016/NS-EN ISO 13485:2016 and ISO/TS 15883-5:2005 Quality Management System standards.
Characteristics:

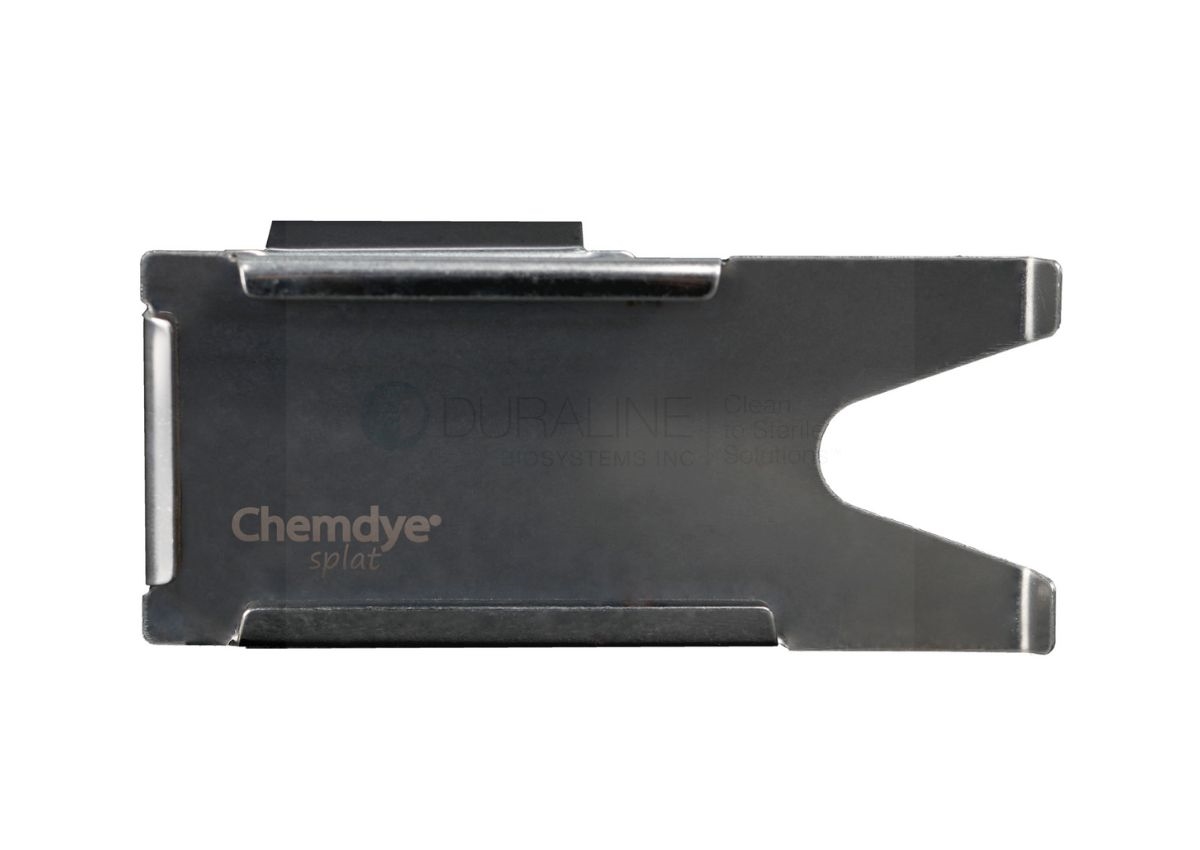

Chrome-plated SUS304 grade stainless steel, a reusable holder known for exceptional resistance and durability.
Base dimensions: 32 mm wide, 72.5 mm long, with a pin at the back side.
Design and Compatibility:
Designed for easy fixation on trays, ensuring a reproducible location of the cleaning indicator in ultrasonic washing machines without disrupting the washing process.
Storage Conditions:
Store in a dark place at temperatures between 10-30 °C and relative humidity (RH) of 30-80%.
Transportation Precautions:
Secure transportation by placing in closed and strengthened boxes to prevent damages.
The product's transport poses no health risks.
Shelf Life and Packaging:
With a shelf life of 500 cycles, each unit is packed individually, providing essential information such as product code, manufacturer details, storage conditions, batch number, manufacture date, presentation, and bar code and datamatrix code.
Instructions for use
- Choose the Chemdye Splat indicator according to the desired difficulty.
- Place the cleaning indicator in side the holder.
- Place the system on the tray along with the material.
- Once the cleaning cycle is over, remove the indicator.
- Analyze indicators using the reference table and record results.
If unfavorable results are obtained, perform the appropriate corrective actions and repeat the washing process.
Refer to chart
