Crest Powersonic P230D Ultrasonic Cleaner, 0.75 Gallon (2.8 Liters)

P230D-45 115V P230D-45 230V
P230D-132 115V P230D-132 230V

Product Code: CP230D

Try DuraSonic Ultrasonic Cleaners

Description

Technical Specs

Literature

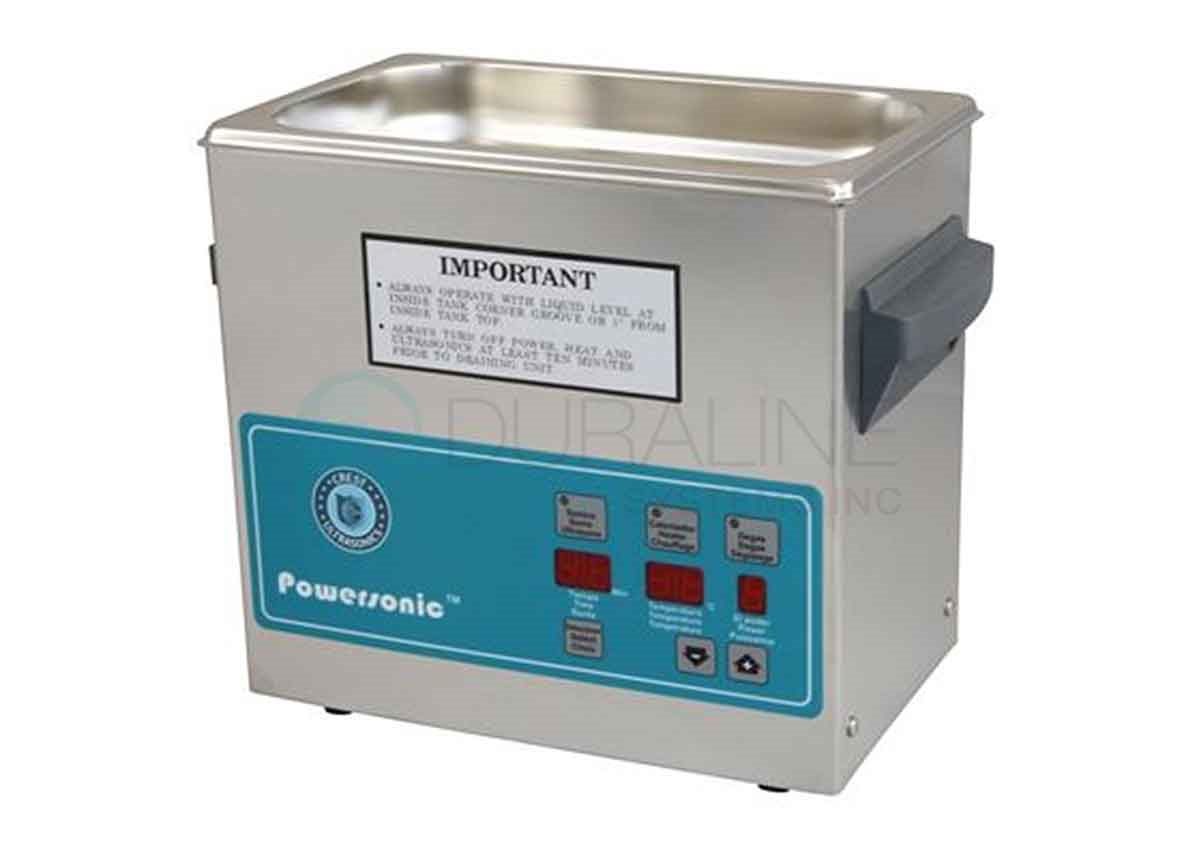

Crest Powersonic P230DD Benchtop Ultrasonic Cleaner, 0.75 gallon
WARRANTY: 2 year parts and labor
P230D-45 115V
P230D-45 230V

P230D-132 115V
P230D-132 230V

The Powersonic P230D ultrasonic cleaning unit comes with a 2 year parts and labor warranty. Crest's Powersonic rugged industrial-strength performance gives you consistent quality at a benchtop price. Crest's exclusive Powersonic feature ensures uniform cleaning throughout the tank by sweeping the ultrasonic frequency 3 kHz, creating overlapping ultrasonic waves. This eliminates inconsistent cleaning due to hot spots (areas of intense ultrasonic activity) in the cleaning solution, caused by the unvarying or "standing" waves produced by conventional ultrasonic power supplies.

Features:

Lifetime heater warranty
2-year warranty on parts and labor
Main on/off switch
Three configurations available: Analog model with timer, Analog model with timer and adjustable thermostatically controlled heater, or Digital model with timer, heat, power control and degas
All timers have continuous-operation capabilities
Cover included with all units
Ceramically Enhanced Transducers
All stainless steel enclosures resist damage from chemical spills and will not crack
Sweep Frequency 45 kHz
Adjustable, thermostatically controlled heaters (ambient to 80°C)
Precise control of time, heat, power and degas on digital units
Drains with flow control valve on all 3/4 gallon and larger units

Model	Inside Tank Dimensions L x W x H (inches/millimeters)	Voltage	Tank Capacity (Gallon/Liter)	Available Frequency	Sonic Power (average wattage) (45 kHz) (132kHz)	Heat/Power (wattage)
P230	9.5 x 5.25 x 4 237 x 134 x 100	115V 230V	0.75 2.8	45 kHz 132 kHz	80 80	200
P360	9.5 x 5.25 x 6 237 x 134 x 150	115V 230V	1.1 4.2	45 kHz 132 kHz	100 100	200
P500	11.75 x 6 x 6 297 x 148 x 150	115V 230V	1.4 5.4	45 kHz 132 kHz	120 120	400
P1100	11.75 x 9.5 x 8 297 x 237 x 200	115V 230V	3.2 12.3	45 kHz 132 kHz	180 160	600
P1200	19.5 x 5.25 x 6 502 x 134 x 150	115V 230V	2.4 9.2	45 kHz 132 kHz	200 140	600
P1800	19.5 x 11.75 x 6 502 x 297 x 150	115V 230V	5.1 19.6	45 kHz 132 kHz	240 210	800
P2600	19.5 x 11.75 x 8 502 x 297 x 200	115V 230V	6.9 26.1	45 kHz 132 kHz	300 240	1,000
