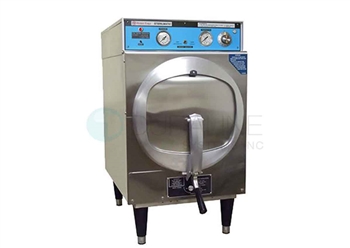

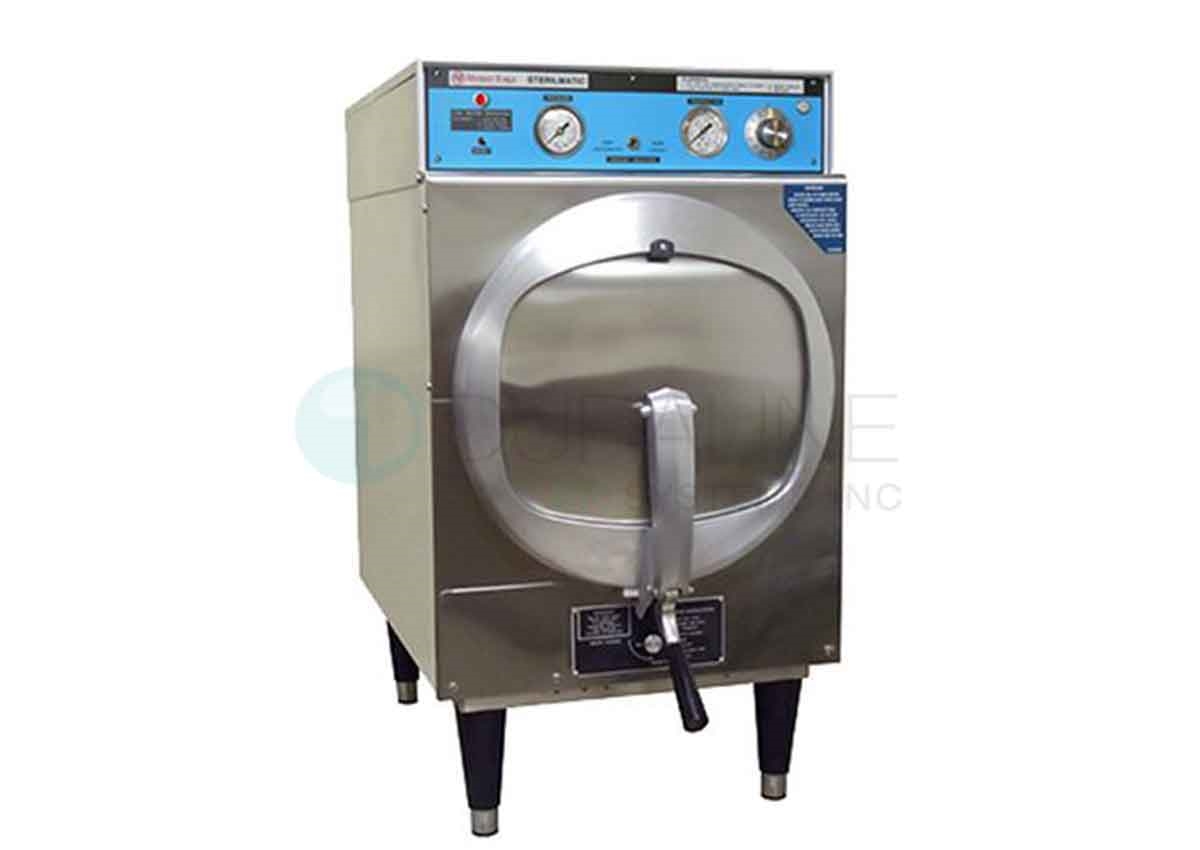

Market Forge STM-E Analog Sterilmatic Steam Autoclave Sterilizer Refurbished
WARRANTY: 6 months parts only
The Largest Capacity in the most compact space! Small on the outside, the Sterilmatics has as much inside capacity as many large, more costly conventional sterilizers and up to five times the capacity of smaller table top units.
Economical, reliable and simple to operate, the versatile Sterilmatics provides the highest standards of sterilizing performance in a number of facilities, such as, Laboratories, Veterinary Clinics, Food Processing Plants, Wineries, Fisheries, Dairy Processing Plants, and more.
Sterilize glass beakers, pipettes, test tubes and flasks. Metal and plastic instruments, syringes, needles, brushes, rubber gloves, catheters, rubber tubing, dressings, linens, petri dishes and more.
Standard Features:
- Automatic temperature controls
- Temperature up to 250°F (121°C)
- Thermostatic steam trap
- Thermometer range 180°-300°F (82°-149°C)
- 0-30 lb. steam gauge
- 0-60 minute timer
- Low water cut-off, signal light, and safety valve
- Flat perforated steam baffle
- Removable pan supports
- 18-3/4” wide x 27-5/8” high x 31” deep (55-1/4” high on optional stand)
Options & Accessories:
|
Product Code
|
Description
|
OEM
|
Price
|
|
MF1018A-AM
|
12' x 20' x 2' Perforated Tray
(Unit will holds three of this size)
|
Replaces 10-1203
|
$107
|
|
MF1018B-AM
|
12" x 20" x 4" Perforated Tray
(Unit will hold (2) of these, as well as (1) 2-1/2" tray)
|
Replaces 10-1204
|
$134
|
|
MF1018C-AM
|
12" x 20" x 6" Perforated Tray
(Unit holds (1) of these, as well as (1) 2-1/2" tray)
|
Replaces 10-1205
|
$206
|
|
MF1018D
|
12" x 20" x 2-1/2" Wire Basket
|
10-1228
|
$392
|
|
MF1018E
|
12" x 20" x 4" - Wire Basket
|
10-1229
|
$406
|
|
MF1076
|
Exhaust Condenser
(can't be connected to outside vent)
|
95-0436
|
$2,575 |
|
MF1077
|
Exhaust Condenser 240V, 50/60 Hz
|
95-3629
|
$3,348 |
|
MF1021
|
Spare Parts Kit
(STM-E & STM-EL Models)
|
95-6061
|
$1,441
|
|
MF1022
|
Spare Parts Kit
(STM-EX & STM-ELX Models)
|
95-6062
|
$2,185
|
|
MF1000
|
New Chamber Cylinder Kit
Buy refurbished with NEW chamber!
|
98-4217
|
$13,320 |
|
MF1016
|
Recording Thermometer 120V / 60 Hz
|
95-6233
|
$3,476
|
|
MF1023
|
Recording Thermometer 230V / 50Hz
|
95-6234
|
$3,932
|
|
MFSTAND
|

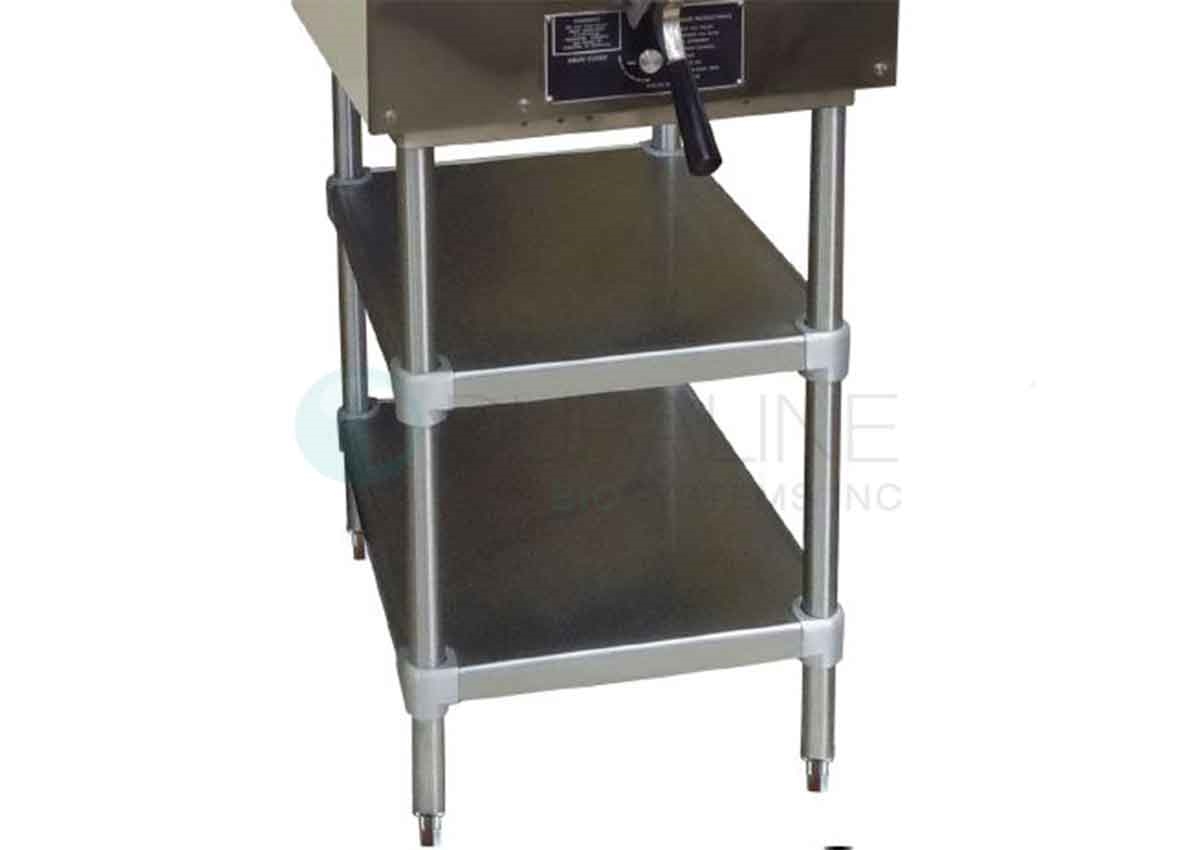

Stand 28" high. Includes 1 shelf.
|
95-6060
|
$2,256 |
|
MF1014
|
Extra Shelf (for stand MFSTAND)
|
95-6054
|
$729
|
- Controls: Manual
- Chamber: 16" x 26"
- Cylinder: 3/16" (4.8mm) thick welded aluminum, which ensures durability and strength.
- Sterilizer exterior: Polished stainless steel.
- Stainless steel is commonly used in medical and laboratory settings because it is resistant to corrosion and easy to clean.
- Dimensions (L x W x H): 31" x 18.75" x 27.6"
- Interior dimensions: Diameter of 16" (406mm) and a length of 26" (660mm)
- cubic content of the cylinder is 5,220 cubic inches (85 liters)
- Door opening of 13-1/2” (343mm) wide and 11” (279mm) high.
- Voltage: 208, or 240 Volts, 60Hz, 1 or 3 phase
- 18-3/4” wide x 27-5/8” high x 31” deep (55-1/4” high on optional stand)
- Sterilizing compartment will have a pan capacity of: Accessories
- (3) 12” x 20” x 2-1/2” (305mm x 508mm x 64mm) or
- (2) 12” x 20” x 4” (305mm x 508mm x 102mm) or
- (1) 12” x 20” x 6” (305mm x 508mm x 152mm)
- Additional information: Detailed specifications
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Q. Can I use distilled water in Market Forge Sterilematic sterilizers?
A. No, distilled water is NOT recommended by the manufacturer. See Installation Page 2 of the operators manual
WATER CONDITIONS
When sterilizing culture mediums that generate sulfide gas or chlorine gas, the inside of the chamber
must be cleaned and rinsed thoroughly without fail.
Market Forge from time to time is asked the question
about using distilled or deionized water for use with our
Sterilizer models STM-E and STM-EL. We are always
asked why these water choices are not allowed for use
with our units and what would be recommended. To address this situation, we have complied the following as a
means of satisfying these questions:
1. We have found that the use of distilled or deionized
water will aggressively attack the pure coat of Aluminum Alclad, which protects the bottom surface from
oxidizing and then eventually pitting (reference: Operating and Maintenance Instructions).
2. In addition pitting can also be caused by several other
external environmental factors. Few examples are as
follows. These conditions have been highlighted in
our documentation.
• Grains of hardness in the water supply should
be as follows (.25 to 2).
• A pH imbalance in the water supply can greatly
affect the life to the aluminum cylinder. The pH
range that would be recommended is between
7.0-8.5.
• The lack of a positive electrical ground can
cause an electrolytic reaction that will accelerate
pitting.
• Another contribution to accelerate pitting is the
type of cleaning solutions used or the abrasive
scrubbing pads. If a low pH is present with the
detergents being used or an abrasive pad, the
protective Alclad coating will be removed during
the cleaning process.
• Spillage of media being sterilized can also contribute to the accelerated pitting if it is corrosive.
• CHLORINE LEVEL ≤ 1 PPM.
|
|
|
|
|
|
|
