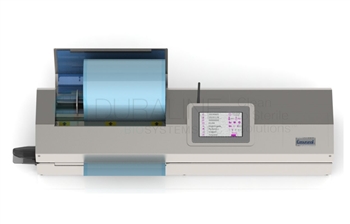

EasySeal Automatic 7" LCD Touchscreen Heat Sealer w/Built-In Cutter and Printer, 12mm Seal Width

Sealing-printing-machine-touch-screen-7-inch-lcd-capacitive

Price: $8,100.00

Product Code: NES-EF122A

Qty:

Description

Technical Specs

EasySeal Automatic 7" LCD Touchscreen Heat Sealer with Built-In Cutter and Printer, 12mm Seal Width

Product code: NES-EF122A

7" colored capacitive LCD touch screen with a graphical operation interface, making it user-friendly and intuitive. It comes with an in-built clock and allows for random setup of parameters, large-font printing, and an automatic storage function. The machine includes a printing parameter database, and the sealing parameters can be recorded via a wireless router for future reference and follow-up.

To ensure precise sealing, the machine is equipped with a built-in forward/backward counter to accurately track the sealing quantity. For added safety, the machine automatically stops if the sealing temperature exceeds ±4°C, maintaining high sealing quality and safe operation. The temperature is controlled by a microcomputer with ±1% accuracy, and the working temperature range can be set from 60°C to 220°C.

This model features a unique structural design, offering a compact size and lightweight for ease of use and portability.

Features

7" Colored Capacitive Touch Screen: Provides an intuitive and easy-to-use graphical interface.

Graphical Operation Interface: Enhances user experience with clear visual navigation.

Single Chip Control System: Ensures reliable and efficient performance.

Adjustable Parameters: Allows customization to meet specific sealing and printing requirements.

Multiple Language Support: Can be set up to display and print characters in different languages.

Voice Prompt & Voice Reading: Provides audible alerts for user guidance and ease of operation.

Wireless Wi-Fi Connection: Enables remote control and monitoring for convenience.

Printing Parameter Database: Automatically stores printing settings for future use.

Temperature Control: Precise temperature management ensures consistent sealing quality.

Automatic Fault Detection: Alerts users of issues to prevent downtime and improve operation efficiency.

Printer: 2-Line printing

Item #	Description	Length Seal	Width Seal	Watts	Dims
NES-EF007B	Manual cutting sealing	15.75" (400mm)	10mm	550	460x330x150mm
NES-EF008B	Semi-Automatic manual cutting + sealing	15.75" (400mm)	10mm	600	460x330x150mm
NES-EF100L	Automatic sealing only (no cutter/printer)	Rotary sealing	12mm	500	426x206x125mm
NES-EF101-CR	Automatic sealing with printer	Rotary sealing	12mm	500	566x235x190mm
NES-EF058B	Automatic cutting + sealing (no printer)	Reel max	10mm	600	770x350x320mm
NES-EF122A	Automatic cutting + sealing with 2-Line printer	Reel max	12mm	600	1090x290x200mm

*Rotary sealing: no sealing length limits
