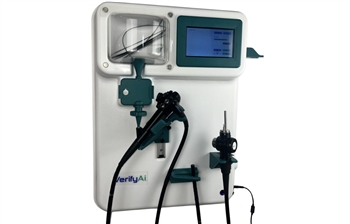

VerifyAi Automatic A1 Borescope & Endoscope Inspection System with LCD Touchscreen control
Product code: NVAA1
The automatic machines thread a micro camera through your scope with simple setup from you.
VerifyAi provides advanced micro-cameras and borescopes designed to inspect endoscopes and other difficult-to-reach spaces with ease and precision. Developed to support hospitals, ASC’s, and service companies, VerifyAi ensures accurate detection of channel damage, tracking of damage progression, and validation for necessary repairs.
The system can also generate reports on any tube. Rigid or flexible. Just change the part cradle to match the tube you want to work with.
Key Features of the VerifyAi System A1: - Camera Probe: 2mm diameter, 3m length for full endoscope coverage
- Control: 7" LCD Touch Screen, 400 x 400 pixel resolution, LED light source
- Automated Reporting: Report creation with email distribution and secure cloud storage
- Durability: Camera tested for 5,000 uses, IPX7 waterproof catheter design
- Dashboard Management: Compare device inspections over time, store and share reports
- Verify OS
- Allows you complete control
- Work fast with handy defaults
- Customize your recordings
- Receives frequent updates.
Easy Inspection Process- Scan your badge, scan the endoscope code, and press record. VerifyAi does the rest, with options for automatic or manual camera movement. Add user ID and scope serials on the touchscreen if scanning isn’t available. After recording, highlight any issues, and a report is automatically generated and sent.
Cloud Dashboard & AI Reporting:
- Included with Purchase: Dashboard access is included with your machine.
- Video Review & Report Management: Search, review, edit, or create new reports and raw videos.
- 100GB Storage: Enough for around 1,000 scope recordings; automatic deletion for older files or expand with 100GB for $19/month.
- Secure Cloud Database: Safely stores reports and videos.
- Device Information Access: Quickly locate and review device-related information through a user-friendly interface.
WARRANTY: 12 months
Technical Specs: A1
- Probe Diameter 2 mm, Length 3 meters [enables a single pass through the longest Endoscopes]
- 7” LCD Touch Control Screen
- 400 x 400 Pixel Camera with LED light source
- IPX7 Waterproof [Catheter]
- Automated Report Creation with email distribution
- Cloud DASHBOARD to review, edit, and share Inspections
- Compare individual Endoscopes or other devices over time to detect failure progression, etc.
- Compact Design 18” x 28” [46 x 123 cm] for wall mount and cart mount
- Durable Camera Probe, Tested to 5000 passes without damage
- Ai Image Recognition and Damage Assessment (fees apply)
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Q. What is the VerifyAi A1 system designed for?
A. The VerifyAi A1 is an advanced inspection system designed to support both endoscopic (medical) and borescopic (industrial) inspections. It provides precise visual inspection of hard-to-see areas, such as medical endoscope channels, using a micro-camera that can detect and assess damage.
Q. Does the VerifyAi A1 system have a touchscreen?
A. Yes, the VerifyAi A1 features a 7-inch LCD touchscreen, allowing users to control the system, adjust settings, and navigate inspections with ease.
Q. What are the main features of the VerifyAi A1 camera probe?
A. The camera probe has a diameter of 2mm and a length of 3 meters, making it suitable for single-pass inspections of long endoscopes. It includes a 400 x 400 pixel camera with an LED light source for clear imaging and is IPX7 waterproof for durable performance.
Q. How does the VerifyAi A1 handle reporting?
A. The system provides automated reporting with options to generate and send reports via email. It includes a cloud-based dashboard for secure storage, review, editing, and sharing of inspection reports, with the first 100GB of video storage included.
Q. What additional features does the VerifyAi A1 dashboard offer?
A. The VerifyAi dashboard serves as a complete inspection management system. It allows users to review and edit reports, compare inspection data over time, and create PDFs for sharing. Users can also scrub through video timelines to pinpoint and assess damage areas. Additional storage is available in increments of 100GB for $19/month.
Q. Is AI used in the VerifyAi A1 system?
A. Yes, VerifyAi offers an optional AI-powered reporting service, which detects and highlights various types of damage, such as scratches, punctures, stains, and deformations, enhancing accuracy and reporting detail. This AI Report Service is free for the first three months and then available by subscription in tiers.
Q. What subscription tiers are available for the AI Report Service?
A. Subscription options include Tier 1 (100 reports/month for $39/month), Tier 2 (1,000 reports/month for $89/month), and Tier 3 (5,000 reports/month for $149/month).
Q. What warranty does the VerifyAi A1 system come with?
A. The VerifyAi A1 system includes a one-year warranty, covering durability and ensuring reliability. The camera probe is rigorously tested for up to 5,000 uses without damage.
Q. How does the inspection process work with the VerifyAi A1 system?
A. The process is straightforward: users can scan a badge and the endoscope’s code to start a recording automatically. If scanning isn’t available, user ID and serial number can be manually entered via the touchscreen. After recording, specific damage areas can be marked, and reports are created and sent to preset email lists.
Q. Can reports be shared or printed in different formats?
A. Yes, VerifyAi provides options to generate easy-to-read PDF reports, allowing users to share findings with others in a versatile format.
Q. How does the VerifyAi A1 manage video storage?
A. The system offers 100GB of cloud storage (approximately 1,000 scope recordings) with automatic deletion of older recordings when space is full, or users can opt for additional storage.
Q. What are the main benefits of the VerifyAi A1 system?
A. VerifyAi A1 offers comprehensive, automated inspections with AI reporting, touchscreen control, cloud-based storage, easy reporting, durable design, and flexible storage options. It provides a streamlined inspection and damage assessment process, ideal for hospitals, ASCs, and service companies.
|
|
|
|
|
|
|
