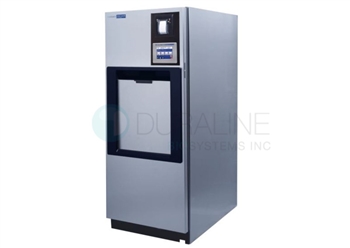

Refurbished Steris Amsco Lab 250 Steam Sterilizer 20" x 20" x 38" Chamber, 250 Liters / 66 gallons
Steris manufactures two models for Life Science applications: the Amsco Lab 250 and Amsco Lab 110 are ideal for laboratory and industrial applications. Choose from three configurations:
- Gravity - designed for sterilization of non-porous heat and
moisture-stable goods, sterilization of liquids and
media in borosilicate glass containers with vented
closures, and decontamination of supplies after laboratory
procedures. The gravity sterilizer is equipped with gravity
and liquid cycles.
- Prevacuum - designed for fast, efficient sterilization of
porous, heat- and moisture-stable materials, in addition to
the same sterilization capabilities as the gravity sterilizer.
The prevacuum sterilizer is equipped with prevacuum,
gravity, liquid, leak test, and daily air removal test cycles.
The vacuum level as well as the charge level for the prevac
pulses are adjustable.
- Isothermal - designed for low temperature sterilization of
heat-sensitive and heat-coagulable materials in addition
to the same sterilization capabilities as the gravity sterilizer.
The isothermal sterilizer is equipped with isothermal,
gravity, and liquid cycles.
Amsco Lab 250 door options:
- Single - for open, cabinet enclosed, free standing, recessed
- Double - for recessed through one wall or two walls
Features:
- Allen-Bradley MicroLogix™ control system with enhanced functionality and user-friendly A-B PanelView Plus™ 600 interface screen.
- Touch-sensitive screen with 18-bit color graphic display
- The display features 320 x 240 resolution color-active matrix (TFT)
- Display is designed with emphasis on human factors and user recognizable symbols
- 20 cycles may be individually selected and programmed
- Compact Flash (CF-Card) memory card slot on operator panel for memory backup/restore
- Help screens for control operation
- Service reprogrammable flash ROM memory
- Program is stored in flash for permanent storage
- Variables are stored in flash memory for permanent storage
- Vertical sliding door with manual operation.
- Non-lubricated, steam activated door seal.
- Modularized vessel and piping for increased dependability and reduced servicing time.
- Reduced piping components increase reliability
- Vessel design allows higher operating temperature (141°C / 285°F)
- Non-clogging chamber drain line prevents media from plugging drain line
- Emergency manual exhaust valve
Optional steam generator available at 208V or 480V
Optional Stainless steel side panels
- Chamber Size: 20" x 20" x 38"
- Capacity: 66 gallons (250 liters)
- Includes two racks and shelves
- Optional accessories: RSA3023-CC removable 2 shelf cart (for leading/unloading)
Steris Amsco Lab Sterilizer Technical Brochure
Standards:
Each sterilizer meets applicable requirements of the following listings and standards, and carries the appropriate symbols:
• Underwriters Laboratories (UL) Standard 544 as certified by ETL Testing Laboratories, Inc.
• Canadian Standards Association (CSA) Standard C22.2 No. 125.
• ASME Code, Section VIII, Division 1 for unfired pressure vessels. The pressure vessel is so stamped; ASME Form R-1 is furnished. Shell and door are designed for maximum allowable working pressure of 42 psig (289.6 kPa) for 16 x 16 x 26"(406 x 406 x 660 mm) sterilizers and 40 psig (275.8 kPa) for 20 x 20 x 38" (508 x 508 x 965 mm) sterilizers.
• ASME Code, Section I, Part PMB, for power boilers, if optional steam generator is supplied.
• Seismic Pre-approval R-0282.
Read more about Steris
Not sure this is the right autoclave for you? Complete our Large Capacity Autoclave Questionnaire online to find the best match.
|
|
|
 |
|
 |
|
