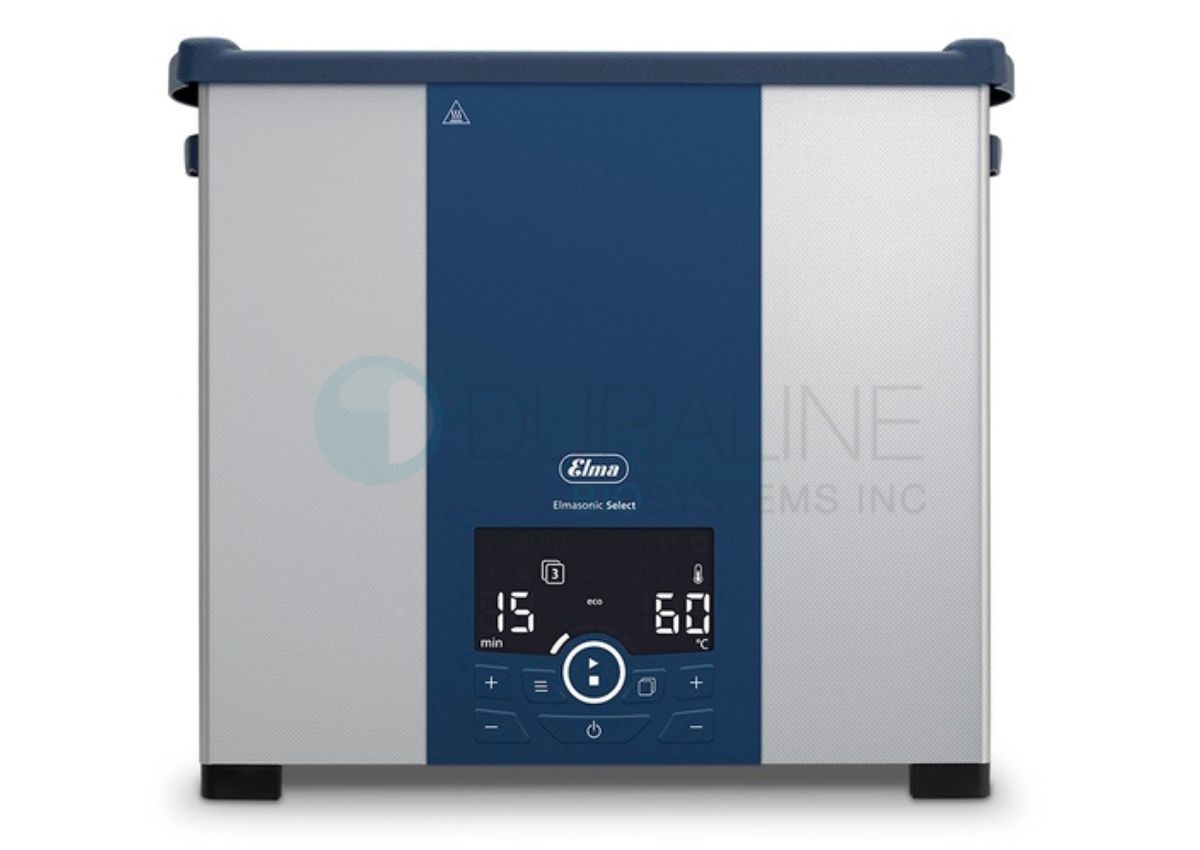

Elmasonic Select 180 Ultrasonic Cleaner, 5 gallon

Elmasonic Select 180 Extra Powerful Ultrasonic Cleaner, Heater/Timer/Memory/Digital Display/5 Modes

110 7003

Price: $3,635.00

Product Code: NES180

Qty:

Description

Technical Specs

Literature

Elmasonic Select 180 Extra Powerful Ultrasonic Cleaner, Heater/Timer/Memory/Digital Display/5 Modes, 5 gal 115V
OEM #: 110 7003

High performance individualized cleaning, mixing and degassing Powerful, versatile, programmable 37 kHz Elmasonic Select ultrasonic cleaners allow users unparalleled control over cleaning and mixing. Set time (1 minute to 6 hours), temperature (up to 80°C), and choose from 5 ultrasonic modes. Store up to 4 commonly used programs for quick call-up and reproducible results. Large, brilliant digital displays of set and actual operating status. Visual and audible signal when run is done.

Features:

Sweep Mode: For uniform cleaning via a slight ± variation in ultrasonic frequency.
Pulse Mode: Brief spikes in power to remove stubborn contaminants or for mixing and sample prep.
Dynamic High Max Power: Combines sweep and pulse for optimized cleaning performance.
Eco Friendly: For nearly silent, gentle cleaning.
Degas: Quickly remove trapped air from solvents and fresh cleaning solutions.
Heater: Select 25⁰C to 80⁰C or in ⁰F; can program unit to auto-start when reaches set temperature.
Timer: Set 1 minute to 6 hours; count-down display, audio/visual completion signal.
Drain: Side-controlled rear drain models Select 60 to 300; side-controlled valve and drain Select 500 and 900

Comparison Chart

Model	Tank Capacity (Gallon / Liter)	Ultrasonic Frequency (kHz)	Unit Dimensions (L x W x H)	Tank Dimensions (L x W x H)	Basket ID (L x W x H)	Ultrasonic Power (Watts)	Heating Power (Watts)	Ultrasonic Peak Power (Watts)
30	.7 / 2.7	37	12 x 6.7 x 9.1	9.5 x 5.4 x 3.9	7.7 x 4.1 x 2	120	200	480
40	1 / 3.9	37	12 x 6.7 x 11.0	9.4 x 5.4 x 5.9	7.5 x 4.1 x 3	120	200	480
60	1.5 / 5.9	37	14.6 x 8.3 x 10.8	11.8 x 5.9 x 5.9	10 x 4.5 x 3	150	400	600
80	2.4 / 9.3	37	22.4 x 7.7 x 11	19.9 x 5.4 x 5.9	17.9 x 4.2 x 3	150	600	600
100	2.4 / 9.3	37	15 x 11.8 x 11	11.8 x 9.4 x 5.9	10 x 7.9 x 2.8	150	400	600
120	3.4 / 12.9	37	15 x 11.8 x 13	11.8 x 9.4 x 7.9	9.8 x 7.5 x 4.3	200	800	800
150	3.8 / 14.6	37	22.6 x 14.2 x 9.1	19.9 x 11.8 x 3.9	17.9 x 9.8 x 1.8	300	800	1200
180	4.7 / 17.8	37	15.9 x 14.2 x 13	12.9 x 11.8 x 7.9	11 x 9.8 x 4.5	200	800	800
300	7.2 / 27.5	37	22.6 x 14.2 x 13	19.9 x 11.8 x 7.9	17.9 x 9.8 x 4.3	300	1200	1200
500	13.1 / 49.7	37	30.5 x 16.7 x 19.9	19.7 x 13.0 x 11.4	18.1 x 11.8 x 7.7	540	1600	2160
900	24 / 89	37	34.4 x 23.4 x 19.9	23.6 x 19.7 x 11.2	21.5 x 18.1 x 7.5	960	2000	3840
